Views: 0 Author: Site Editor Publish Time: 2026-01-12 Origin: Site
In modern solid‑liquid separation processes, controlling moisture content in the filter cake is a critical performance indicator. Low moisture not only improves downstream handling and processing but also reduces disposal and energy costs. One of the most effective industrial solutions for achieving consistently low moisture content is the Rubber Belt Vacuum Filter, a continuous filtration system powered by vacuum suction and optimized mechanical design. In this article, we explore how a Rubber belt filter works, why it delivers superior cake dryness, and what features drive its efficiency across industries.

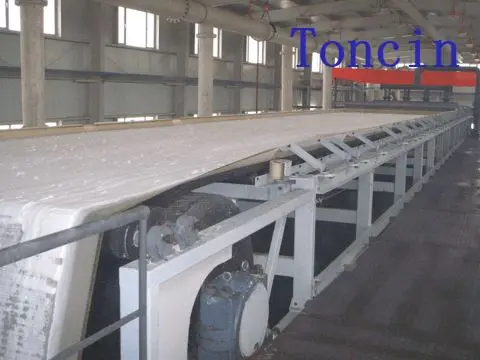

A Rubber belt filter like the Toncin DU Rubber Belt Vacuum Filter delivers high throughput and exceptional cake dewatering performance, making it ideal for mining tailings, gypsum dehydration (FGD), wastewater treatment, chemical processing, and more.
A Rubber belt filter removes moisture primarily through vacuum suction and continuous movement.
Components like the grooved rubber support belt and adjustable washing zones are critical to low moisture results.
Operational control (vacuum level, belt speed, wash strategy) further tunes cake dryness.
Compared to batch systems, Rubber Belt Vacuum Filters provide high throughput and consistent low moisture performance.
These systems are widely adopted across industries for efficient solid‑liquid separation.
A Rubber Belt Vacuum Filter is a type of continuous filtration equipment that drives solid‑liquid separation with vacuum negative pressure coupled with a moving support belt—typically made of grooved or specialized rubber—that supports the filter medium and removes filtrate.
| Component | Function |
|---|---|
| Rubber Support Belt | Supports filter cloth and conveys cake; collects filtrate through grooves |
| Filter Cloth / Media | Retains solids while allowing liquid passage |
| Vacuum Box | Applies negative pressure beneath belt to pull liquid through cake |
| Slurry Feed System | Provides even distribution onto belt surface |
| Washing Section | Applies wash liquid to cake to displace trapped moisture |
| Cake Discharge Section | Removes drier cake for downstream processing |
Unlike simple batch filters, Rubber belt filters operate continuously, producing a uniform cake with controlled moisture.
The ability of a Rubber Belt Vacuum Filter to ensure low moisture content in the filter cake arises from multiple interacting mechanisms. Below we explore the primary factors.
The core mechanism in a Rubber belt filter is the vacuum box located under the support belt. By creating negative pressure (vacuum), liquid is actively drawn through the filter media and collected in drainage channels and the vacuum box beneath. This active suction accelerates liquid removal far beyond what gravity alone can achieve.
The key impact of vacuum suction includes:
Higher driving force for liquid removal
Continuous extraction of water throughout cake formation
Reduced capillary resistance, leading to a drier cake surface
Where gravity filtration may leave significant bound moisture, vacuum draws water until the cake approaches its natural moisture limit.
Uniform slurry distribution is essential for consistent cake formation. Uneven feed can lead to variable cake thickness and trapped moisture pockets. Modern Rubber belt filters use advanced feed boxes that distribute slurry evenly across the filter width before entering the vacuum zone. This uniform feed helps form even cake layers that are efficiently dewatered.
One advantage of the Rubber belt filter design is the inclusion of cake washing stages. Typical industrial models include both co‑current and counter‑current washing, which improve moisture displacement within the cake.
In cake washing, clean wash liquid is applied to the cake surface, pushing residual mother liquor and trapped water deeper into the filter media and out through the vacuum system.
The rubber support belt not only conveys cake but also functions as a filtrate collector. Grooves in the rubber belt form drainage pathways that allow liquid to move swiftly into the vacuum chamber without resistance.
This design:
Enhances liquid collection efficiency
Reduces wet zones where moisture could stagnate
Prevents fluid backflow that increases cake wetness
The filter cloth and the rubber support belt work together to optimize the separation interface. The cloth traps solids while allowing liquid through; beneath it, the rubber belt’s skid‑free surface ensures smooth passage of filtrate to vacuum channels. Proper cloth selection and tensioning also reduce moisture retention.
Some Rubber Belt Vacuum Filters integrate mechanical wiping and scraping just before cake discharge. These mechanisms physically remove clinging moisture, pushing the cake to a lower water content before it leaves the belt. While not present on all systems, such enhancements further drive moisture reduction.
Even with advanced design, operator control plays a significant role. Key parameters include:
Increasing vacuum strength generally lowers moisture content by enhancing vacuum penetration into the cake. However, excessive vacuum can:
Stress components
Increase energy costs
Cause cloth abrasion
Operators must balance vacuum intensity against throughput needs.
Slower belt speed increases residence time under vacuum, enabling more thorough dewatering. However, slower speeds may reduce overall throughput. Modern PLC control systems balance belt speed and cake dryness automatically, maximizing productivity.
The washing section can operate in:
Co‑current washing – wash liquid flows in same direction as filtrate
Counter‑current washing – wash liquid flows opposite direction for more effective moisture displacement
Selectable wash strategies help tailor moisture control to material properties.
To understand why Rubber belt filters excel at low moisture content, it helps to compare them with other major systems.
| Feature | Rubber Belt Vacuum Filter | Filter Press | Centrifuge |
|---|---|---|---|
| Operation Mode | Continuous | Batch | Continuous |
| Moisture Content | Low (efficient vacuum + wash) | Very Low (high pressure) | Variable |
| Throughput | High | Medium | High |
| Automation | High | Medium | Medium |
| Maintenance Cost | Lower | Higher (plates, membranes) | Medium |
| Space Requirement | Moderate to Low | High | Moderate |
While filter presses may produce very low moisture with high pressure, Rubber belt filters maintain impressive dryness with continuous flow and lower operating complexity — often with lower maintenance costs and higher throughput.
Industries that benefit from low moisture cakes include:
Mining tailings dewatering
Flue Gas Desulfurization Gypsum (FGD)
Paper & pulp sludge treatment
Food & beverage processing
Chemical production
In applications like gypsum dehydration, a Rubber Belt Vacuum Filter can reduce moisture content significantly, often bringing cake moisture well below 30%, depending on slurry properties and operating parameters. These systems are designed to handle diverse slurry types while maintaining consistent moisture performance.
| Parameter | Effect on Moisture | Typical Operational Range |
|---|---|---|
| Vacuum Pressure | Lower moisture with stronger vacuum | 0.6 – 0.9 bar vacuum |
| Belt Speed | Lower moisture with slower speed | 1 – 5 m/min |
| Washing Stages | Improved water removal | 1–3 stages |
| Feed Solids | Higher solids improves dryness | 5–20% solids |
This table highlights how operators can tune conditions to influence final cake dryness.
The effectiveness of a Rubber Belt Vacuum Filter in achieving low moisture content in the filter cake lies in its sophisticated combination of vacuum suction, optimized belt cloth design, and flexible operational controls. Systems like the Rubber Belt Vacuum Filter deliver high filtration efficiency, effective cake washing, and superior dewatering — making them ideal for industrial and environmental applications. Continuous innovation in seal design, belt mechanics, and automation ensures that our products deliver stable, low‑moisture cakes while minimizing downtime and operating cost.
A: Depending on slurry type and operating conditions, Rubber belt filters can often reduce cake moisture to below 30%, with optimization.
A: Higher vacuum increases dewatering force, lowering moisture, but must be balanced against component wear and energy use.
A: Yes, co‑current and counter‑current wash stages displace trapped water, significantly lowering residual moisture.
A: Yes — with appropriate sealing and materials, Rubber Belt Vacuum Filters can handle corrosive and sensitive slurries.
A: Slower belt speeds increase residence time under vacuum, producing drier cakes at the cost of reduced throughput.
