Toncin Hvpf Vertical Automatic Filter Press for lithium battery industry

Name: Toncin Hvpf Vertical Automatic Filter Press for lithium battery industry
Brand: Toncin
Rating: 5.0 (43 reviews)

HVPF vertical automatic press filter is the most advanced filter that the world has ever get. Vacuum has a limit, but Pressure not. HVPF vertical automatic press filter use air or water to form a huge pressure difference on both sides of filter cloth to achieve very efficient separation of solid and liquid.

Quantity:
Availability:





Inquire Add to Basket

Model:
HVPF Filter Press
Brand:
Toncin

Product Description

3 (2)

Product Introduction:

HVPF vertical automatic press filter is the most advanced filter that the world has ever get. Vacuum has a limit, but Pressure not. HVPF vertical automatic press filter use air or water to form a huge pressure difference on both sides of filter cloth to achieve very efficient separation of solid and liquid. As filter plate is closed, slurry is pumped into filter chamber through slurry pipes. Part of filtrate then enter the filtrate chamber through filter cloth because of gravity. Then high pressure water force rubber diaphragm to extrude filtrate from filter cake. When these process is finished, the driver run filter clothes and filter cakes is discharged from both sides of filter cloth.

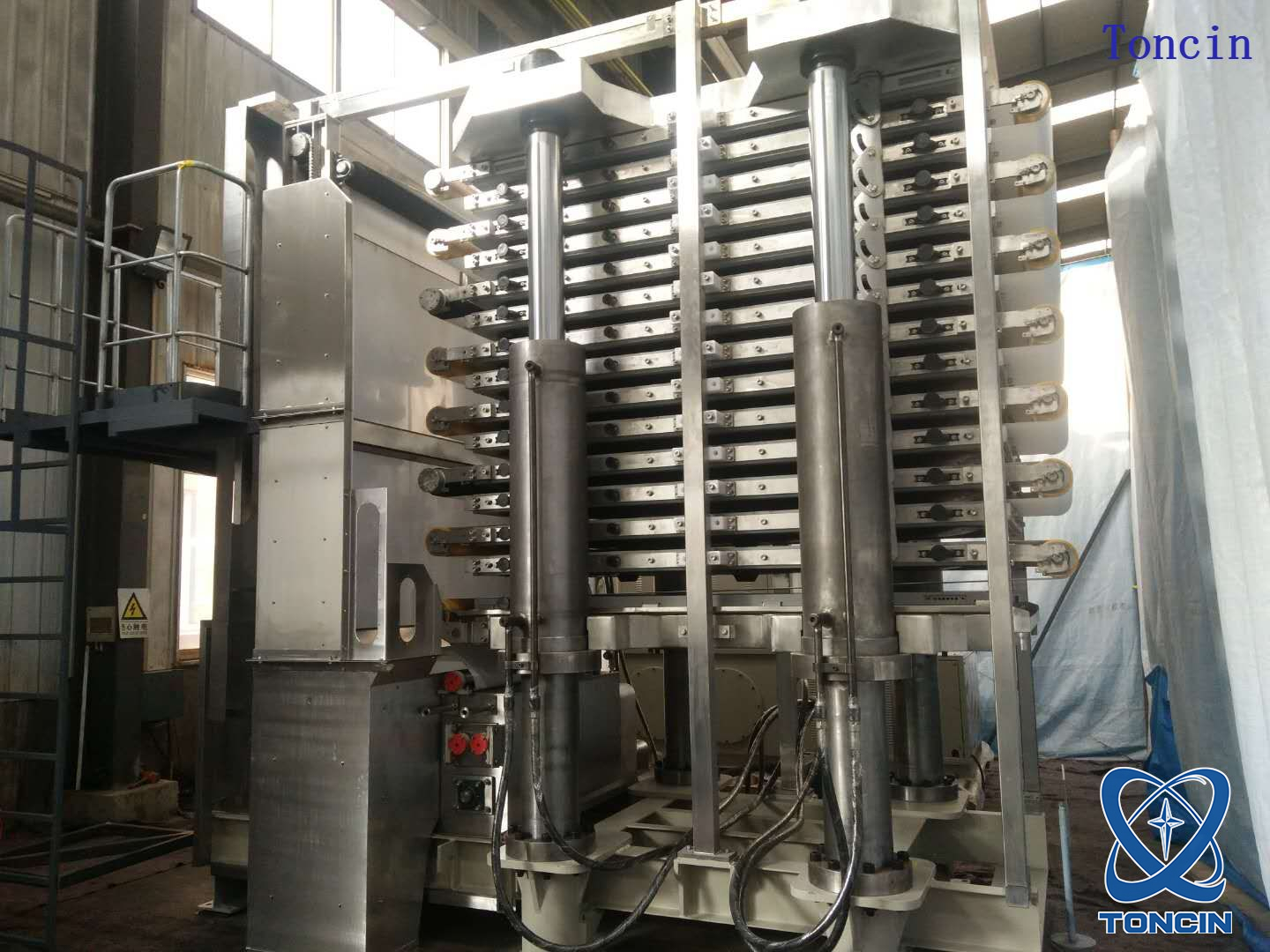

Tower Vertical Press Filter

Product Application:

HVPF vertical automatic press filter can be applied in mining, metallurgy, chemical industry, pharmacy and food industries. It is a kind of high capacity, energy-saving, automatic solid-liquid separation machine.

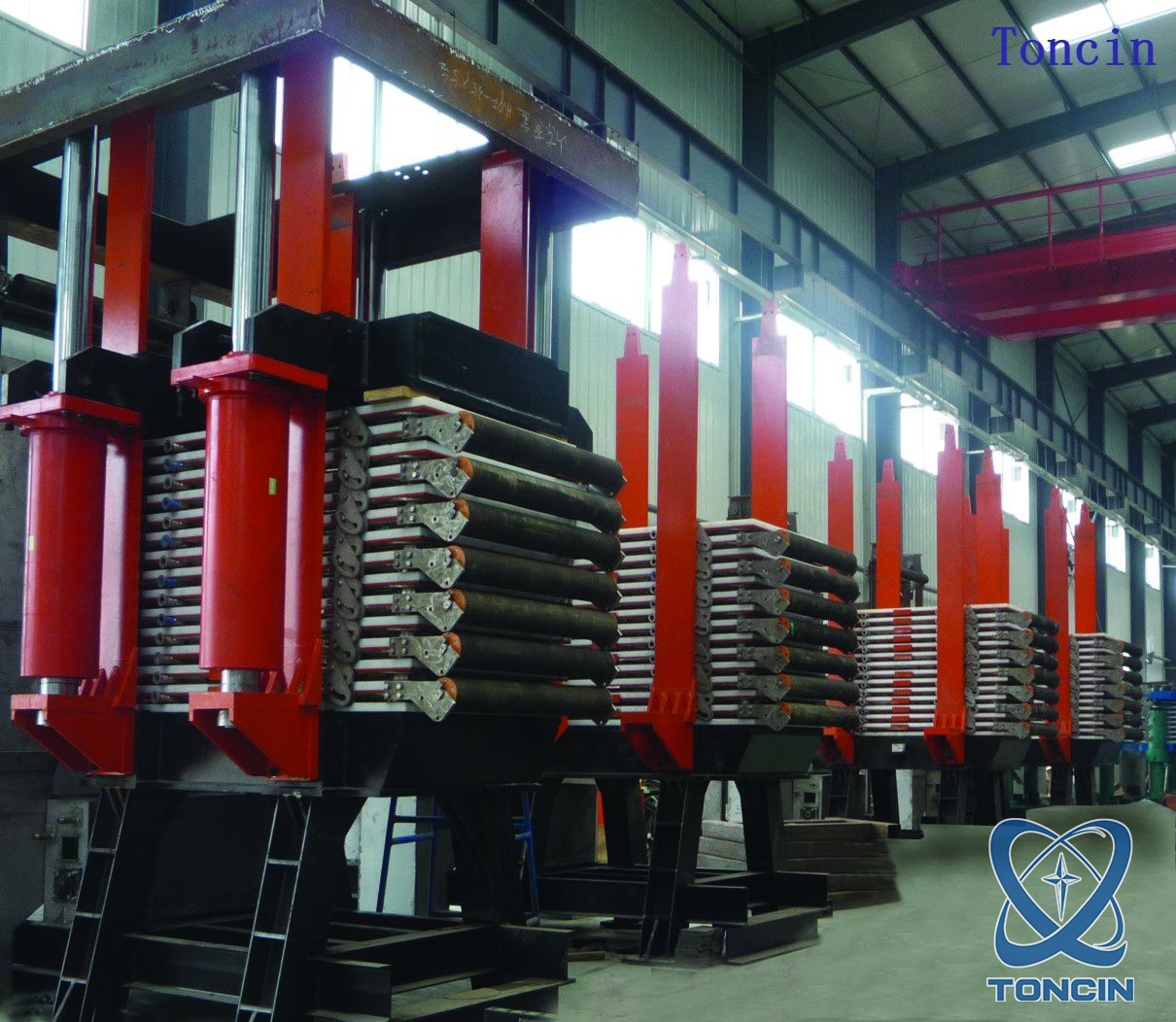

Tower Vertical Press Filter

Supply Range and Requirements on Local Installation:

(1) It consists of host, hydraulic station, water station, cleaning system and control system.
(2) This machine must be installed on solid flat reinforced concrete, or steel rack. Consult foundation size and related dimension to installation sketch map and foundation chart. The depth of groundwork is determined by customers according to real conditions. Host should be suspended by professional technicians, avoid the equipment from impacting or scratching. Utilize grad enter to adjust the host during installation, then install other equipments during fastening the host.
(3) Air supply: granule less than 5 um, pressure 0.5-0.6MPa, Air Volume: take assemble chart as reference
(4) Water supply: max. solid contents 5ppm, solid granule less than 50um, pressure 3.5-6bar, take assemble chart as reference for supply volume
(5)Power supply: 3 phase/380V±5%, single phase/220V±5%,50Hz
(6)Working Environment: working environment requirements for this machine , not freeze.

Product Specifications:

Model	Filtrating Area(m2)	Overall Dimension m (L×W×H)	Filtrating Plate Quantity	Volume(m3) (H=45mm)	Weight (T)	Hydraulic power (KW)	Filter plate specification (mm)	Width of filter cloth
Model	Filtrating Area(m2)	Overall Dimension m (L×W×H)	Filtrating Plate Quantity	Volume(m3) (H=45mm)	Weight (T)	Hydraulic power (KW)	Filter plate specification (mm)	Width of filter cloth
HVPF-1	1	2.5×1.5×2.0	2	0.05	8	7.5	1000*550	0.7
HVPF-2	2	2.5×1.5×2.2	4	0.09	9	7.5	1000*550	0.7
HVPF-3	3	3.5×2.5×2.2	2	0.16	14	11	1750*900	1.05
HVPF-4	4	3.5×2.5×2.3	4	0.27	15	11
HVPF-9	9	3.5×2.5×2.5	6	0.41	16	11
HVPF-12	12	3.5×2.5×2.7	8	0.54	17	11
HVPF-15	15	3.5×2.5×2.9	10	0.68	18	11
HVPF-18	18	3.5×2.5×3.1	12	0.81	19	11
HVPF-21	21	3.5×2.5×3.3	14	0.95	21	11
HVPF-24	24	3.5×2.5×3.4	16	1.08	22	11
HVPF-27	27	3.5×2.5×3.6	18	1.22	23	11
HVPF-15	15	5.1×3.7×3.3	6	0.68	37	22	2500*1020	1.15
HVPF-20	20	5.1×3.7×3.6	8	0.9	39	22
HVPF-25	25	5.1×3.7×3.9	10	1.13	42	22
HVPF-30	30	5.1×3.7×4.2	12	1.35	43	22
HVPF-35	35	5.1×3.7×4.5	14	1.58	44	22
HVPF-40	40	5.1×3.7×4.8	16	1.8	45	22
HVPF-45	45	5.1×3.7×5.1	18	2.03	46	22
HVPF-50	50	5.1×3.7×5.4	20	2.25	48	22
HVPF-60	60	6.9×4.5×5.4	10	2.7	97	37	4010*1500	1.7
HVPF-72	72	6.9×4.5×5.8	12	3.24	100	37
HVPF-84	84	6.9×4.5×6.2	14	3.78	104	37
HVPF-96	96	6.9×4.5×6.5	16	4.32	110	37
HVPF-108	108	6.9×4.5×6.9	18	4.86	112	37
HVPF-120	120	6.9×4.5×7.2	20	5.4	118	37
HVPF-132	132	6.9×4.5×7.6	22	5.94	120	37
HVPF-144	144	6.9×4.5×7.9	24	6.48	123	37
HVPF-156	156	6.9×4.5×8.3	26	7.02	126	37
HVPF-168	168	6.9×4.5×8.6	28	7.56	130	37
HVPF-144	144	9.2×5.5×6.8	18	6.48	142	67	6020*1500	1.7
HVPF-162	162	9.2×5.5×7.2	18	7.29	147	67
HVPF-180	180	9.2×5.5×7.5	20	8.1	150	67
HVPF-198	198	9.2×5.5×7.8	22	8.91	160	67
HVPF-216	216	9.2×5.5×8.2	24	9.72	166	67
HVPF-234	234	9.2×5.5×8.5	26	10.53	172	67
HVPF-252	252	9.2×5.5×8.8	28	11.34	180	67
HVPF-270	270	9.2×5.5×9.2	30	12.15	190	67

Working Process:

Tower Vertical Press Filter

(1) Filtering stage: when the filter plate closed, the slurry is pumped into filter chamber through slurry pipe. The filtrate enter into the filtrate chamber through filter cloth, and get into filtrate manifold through filtrate tube, meanwhile, the filter cake is formed in the filter chamber.
(2) Extrusion: the high pressure water enters into membrane through the tube and make the membrane extrudes towards filter cake to make the filtrate of the filter cake extrude out.
(3) Cake washing: the washing water is pumped into filter chamber by slurry pipe, after washing the cake and through cloth flow into the discharge pipes.
(4) Air drying: the air flow with water go through the filter cake, which can reduce the moisture of filter cake to the maximum and empty the filtrate chamber at the same time.
(5)Filter cake discharge: when the drying process finished, the driving parts drive the filter cloth to run and the filter cake discharges from both sides of filter cloth.

Main Features:

Tower Vertical Press Filter

(1) The structure of filter plate adopts guide device to make sure the smoothly running.
(2) It can continuously automatically realize the operation in the process of filtering, extrusion, washing, drying, discharging and filter cloth regeneration.
(3) The filter pressure can reach 2.0 Mpa. Especially have good effect on various sticky tiny materials and low moisture of filter cake.
(4)the key point of this type of equipment is no matter how much pressure it can get but safety. Hydraulic pressure system is adopted just to make sure every plate locks well. Every nozzle and diaphragm are designed and inspected very carefully to keep the equipment safe when high pressure water gets into chambers.
(5) The equipment adopts PLC + touch screen + automatic valves, and labor input is lower..
(6) Compact structure covers less floor area

Product Details:

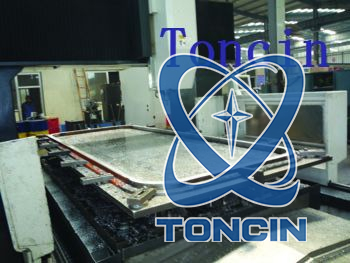

Tower Vertical Press Filter

Service Support

Whole Technological Design

Toncin determines reasonable plans and selections by conducting more systematic laboratory tests, semi-industrialization tests and theoretical analysis calculations and adopting appropriate methods in light of the actual problems faced by customers. And it determines specific parameters through laboratory tests and semi-industrial tests.
Project Construction

Toncin can provide customers with integrated project services for its perfect project management system and experienced high-quality team and can also provide customers with its best services in achieving the ultimate project goal by carrying out the management work on the project quality, schedule, safety, cost, procurement, information files, organization and coordination etc. according to customer’s contractual documents. Toncin contracts the design, procurement, construction and trials etc. for the entire process or some certain stages of the construction project according to the contract and takes full liability for the quality, safety, duration and cost etc. of the contracted project.

Response Time and After-sales Services

If any failure due to a defect has occurred during the warranty period, our company has given the following response and promise: to respond within 12 hours and rush to the domestic scene within 72 hours. With a rigorous and efficient service architecture, diverse and flexible service and response means, Toncin is capable of providing response service up to 7* 24 hours to ensure that users can get help at any time during the warranty period.
