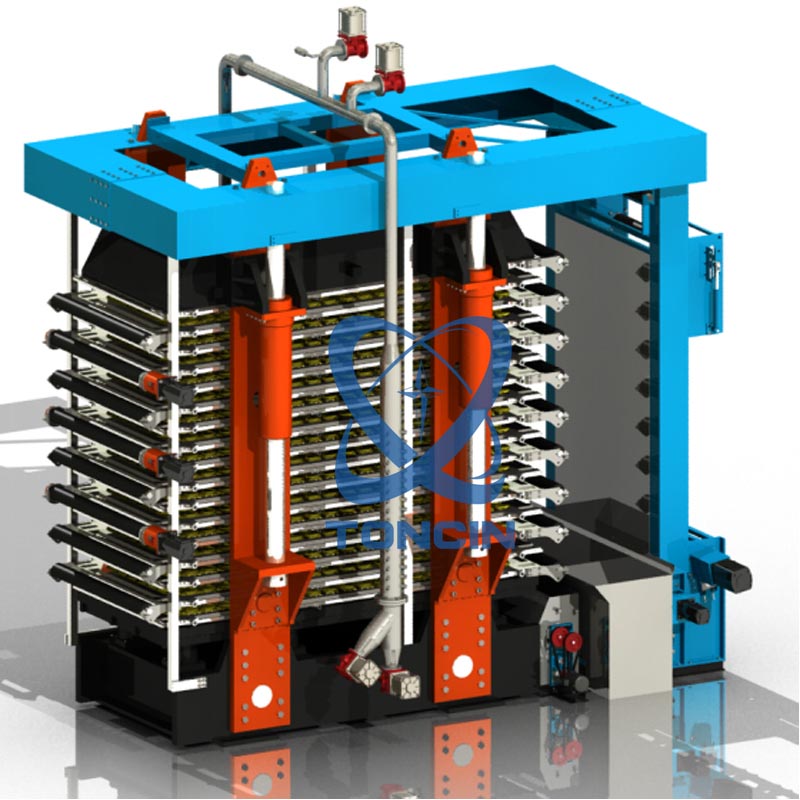

What Is Vertical Filter Press？

HVPF vertical automatic press filter is a new, high eficiency, low energy consumption, environment friendly solid-iquidseparation equipment independently developed by our company. lt uses pressure from slurry pump, gravity of materialand rubber diaphragm rapidly to press liquid out of slurry, achieving high efficient separation of soid and liquid.
Multi-layer plate, vertical filtration, multi filtrate chambers run up and down synchronously, hydraulic self-drive, newcompact design. it can continuously automatically finish the operation of fitering, extrusion, washing, drying, dischargingand filter cloth regeneration.
HVPF vertical automatic press filter can be applied in mining, metallurgy, chemical industry, pharmacy and envirormentalprotection.

The pressure can reach 2.0 Mpa, which means this equipment have a good performance on various sticky tiny materials to achieve lower cake moisture.
The equipment uses hydraulic control, runs stably, reliably and safely.
The equipment uses PLC+ touch screen+ automaic valves, and is easy to operate due to high degree of automation.
Lower cake moisture content, high capacity, and the efficiency is much higher than traditional ones.

Key Features of Vertical Filter Press

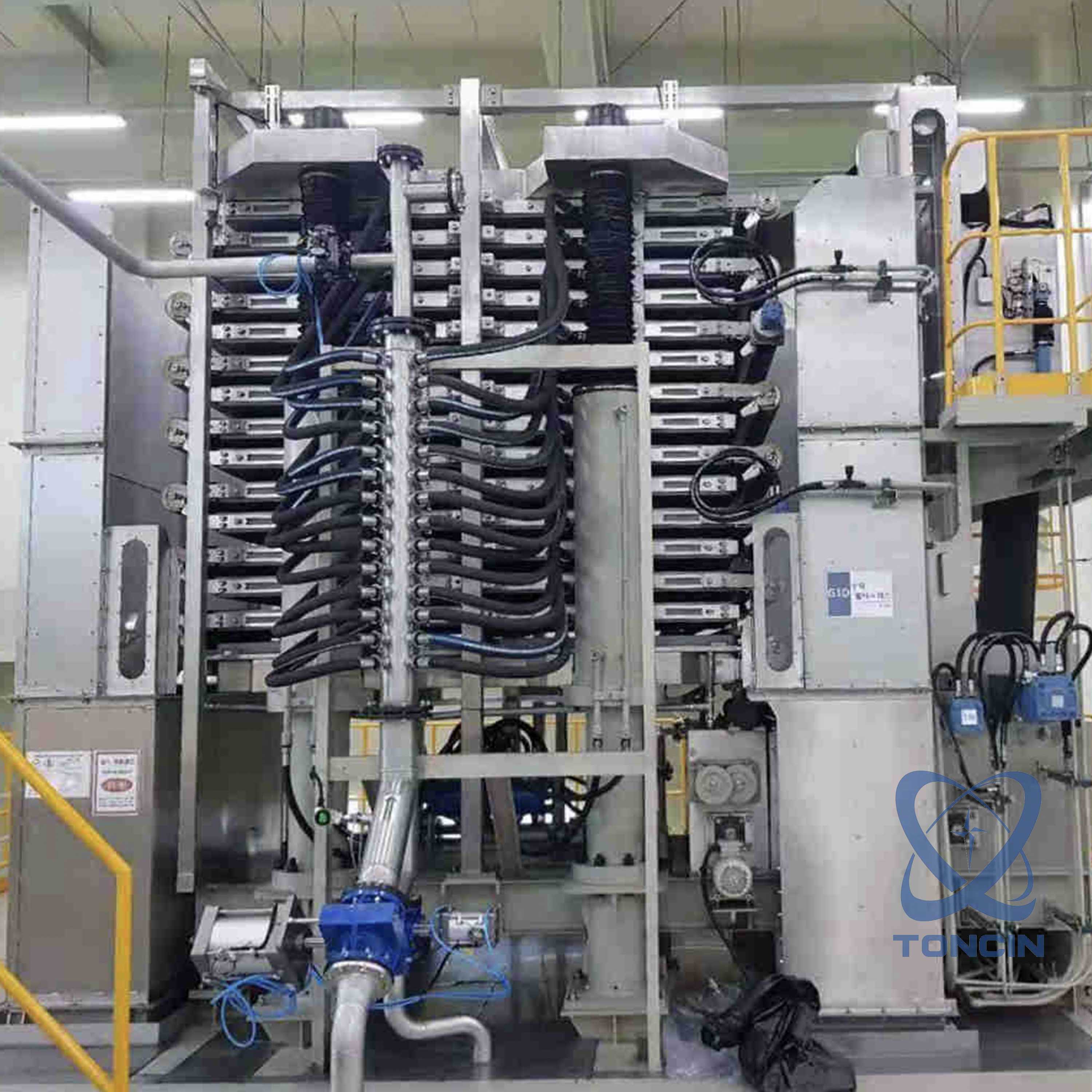

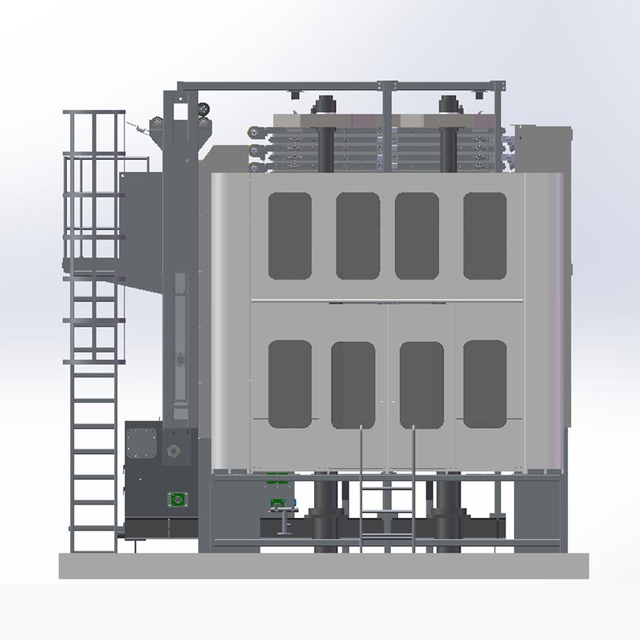

Vertical Filter Press Machine

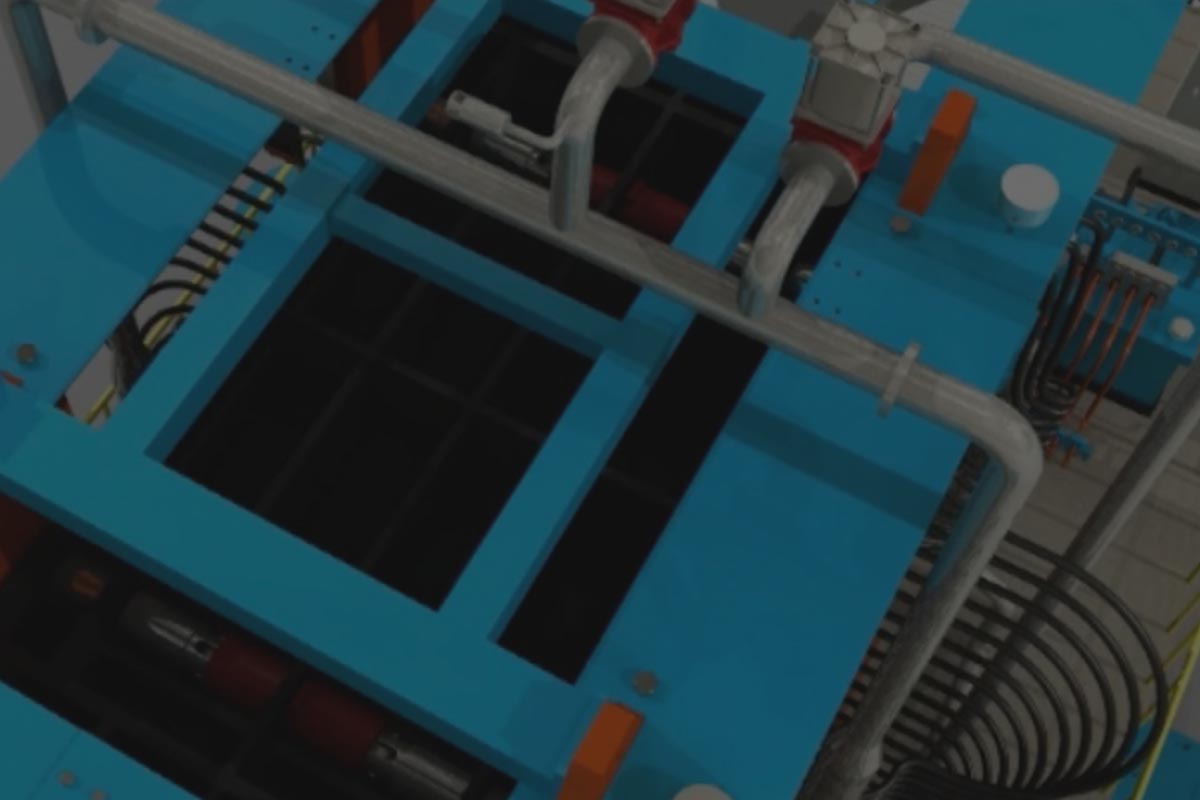

Energy Efficiency

The Vertical Filter Press is designed with advanced energy-saving technology, reducing power consumption by up to 30% compared to traditional models. Its optimized hydraulic system ensures minimal energy waste, making it an eco-friendly choice for modern industries.

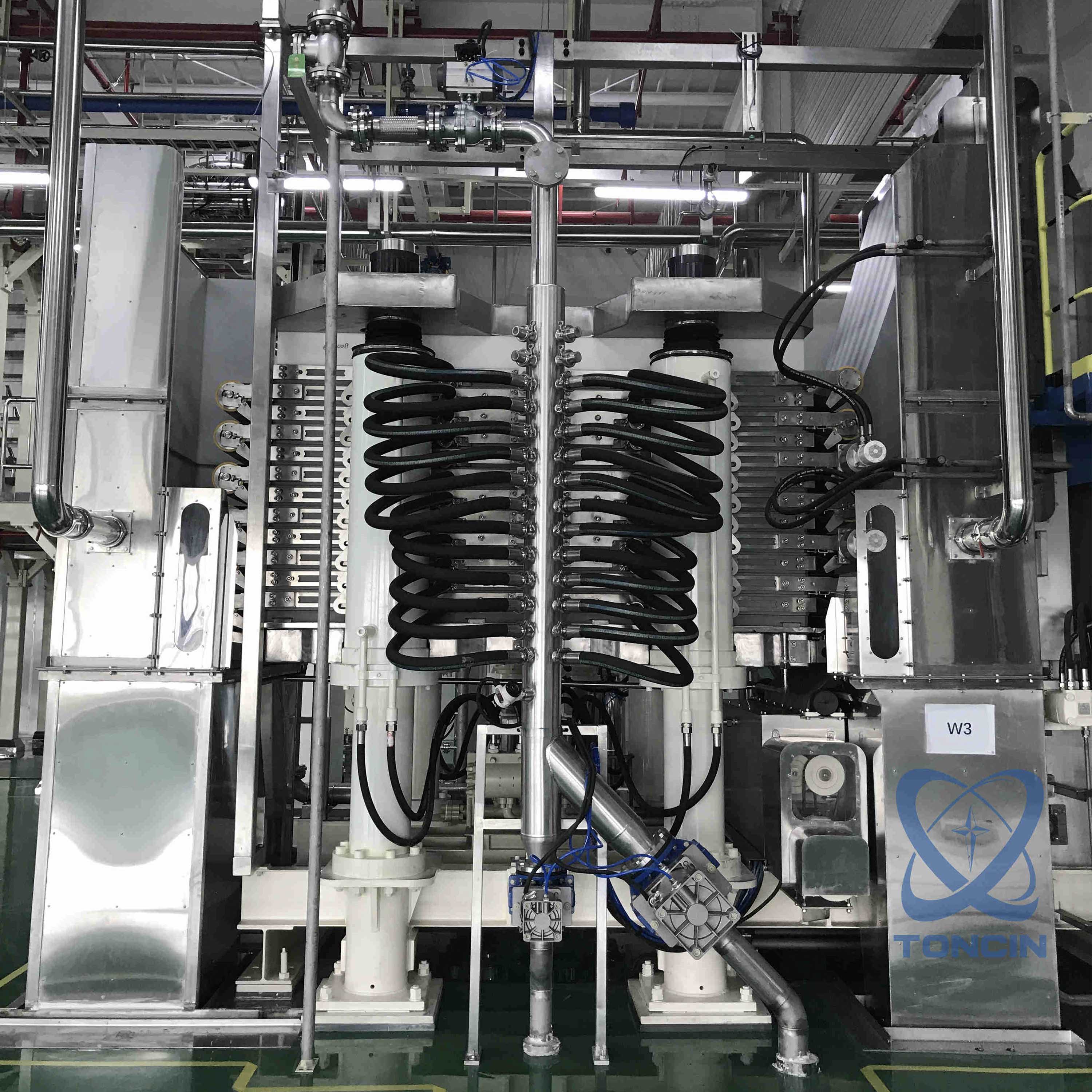

fully automated operation vertical filter press

Fully Automated Operation

It can continuously automatically realize the operation in the process of filtering, extrusion, washing, drying, discharging and filter cloth regeneration, the process is seamless, reducing manual intervention and enhancing operational efficiency.
reduced labor requirement vertical filter press

Reduced labor requirement

Equipped with an intelligent control system, the equipment adopts PLC + touch screen + automatic valves, and labor input is lower.

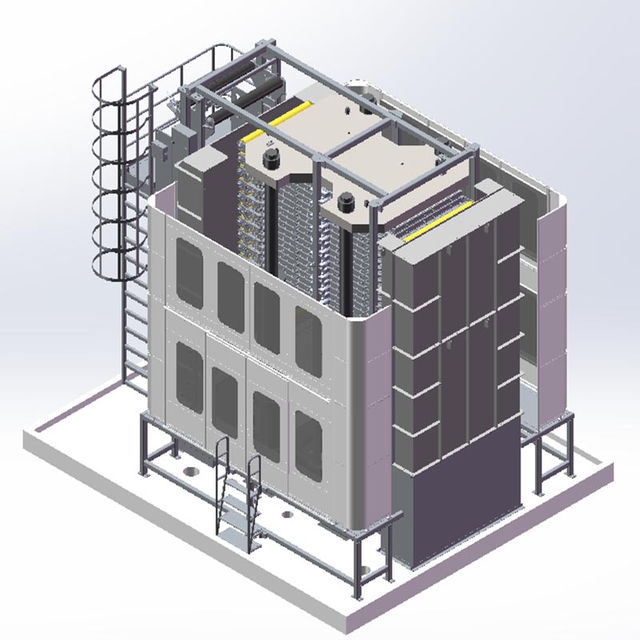

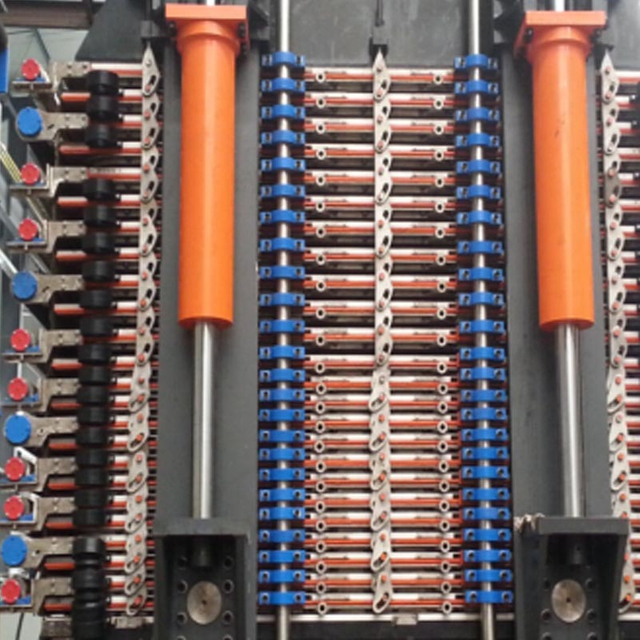

precision design vertical filter press

Precision design for high-pressure safety

The key point of this type of equipment is no matter how much pressure it can get but safety. Hydraulic pressure system is adopted just to make sure every plate locks well. Every nozzle and diaphragm are designed and inspected very carefully to keep the equipment safe when high pressure water gets into chambers.
Vertical Filter Press with Kaolin Chunks

Effective for sticky, fine materials, low-moisture cake

The filter pressure can reach 2.0 Mpa. Especially have good effect on various sticky tiny materials and low moisture of filter cake.

Applications of Vertical Filter Press

The vertical automatic filter press delivers advanced solid-liquid separation across industries, combining automation with superior efficiency over traditional systems.
  • Learn More
  • Learn More
  • Learn More

How Does a Vertical Filter Press Machine Work

  • Filtrating Phase
    After closing filter board frame, material slurry will be pumpedinto filter chamber, then through filtrate soft tube and arrive at general filtratetube after that discharged; meanwhile, it forms filtrate disc in filtrate chamber.
  • First Extrusion
    High pressure water enter into upper chamber through high pressure watertube, then make separating film moving to filter disc for pressing,so that to extrude liquid out from filter disc.
  • Washing(optional)
    Washing liquid is pumped into filter chamber through material slurrytube; then passing through filter disc and filter cloth and thenflow into discharging pipe.
  • Second Extrusion
    Similar to fist extrusion
  • Air Drying
    Through filter disc air current to carry water content, reduce filter water content to the largest extent.

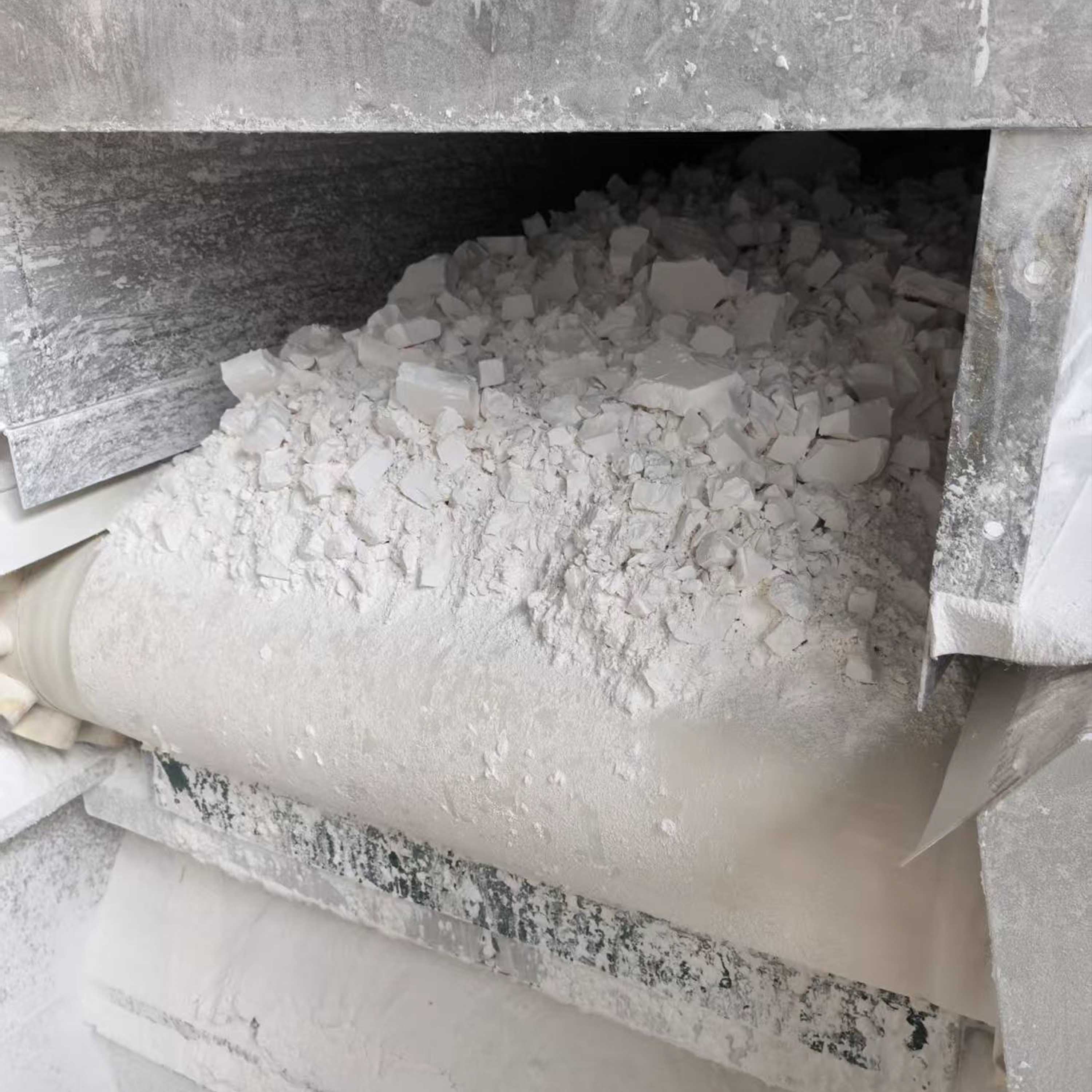

  • Filter Cake Discharge
    When finished air drying, filter plate assembly will open andlet the filter cloth rolling, filter cake drop down from filter press with filter press with filter clothand at the same time enter into washing device to finish recycle.

    • Professional Pre-sales & After-sales Service

    Toncin builds service differentiation through Technical Validation System + Full-process Control + Rapid Response

    Precision Solution Design

    Laboratory testing + semi-industrial trials dual verification ensures technical solutions directly address production line pain points, eliminating gaps between theoretical designs and practical implementation.

    Full-Turnkey EPC Delivery

    End-to-end responsibility from design, procurement to construction and commissioning, with project teams dynamically monitoring quality/schedule/cost to prevent accountability ambiguity and delays from fragmented outsourcing.

    7×24 Emergency Support

    12-hour diagnostic solutions + 72-hour on-site arrival for warranty issues, with resident engineers minimizing production downtime – 50% faster resolution than industry averages.
