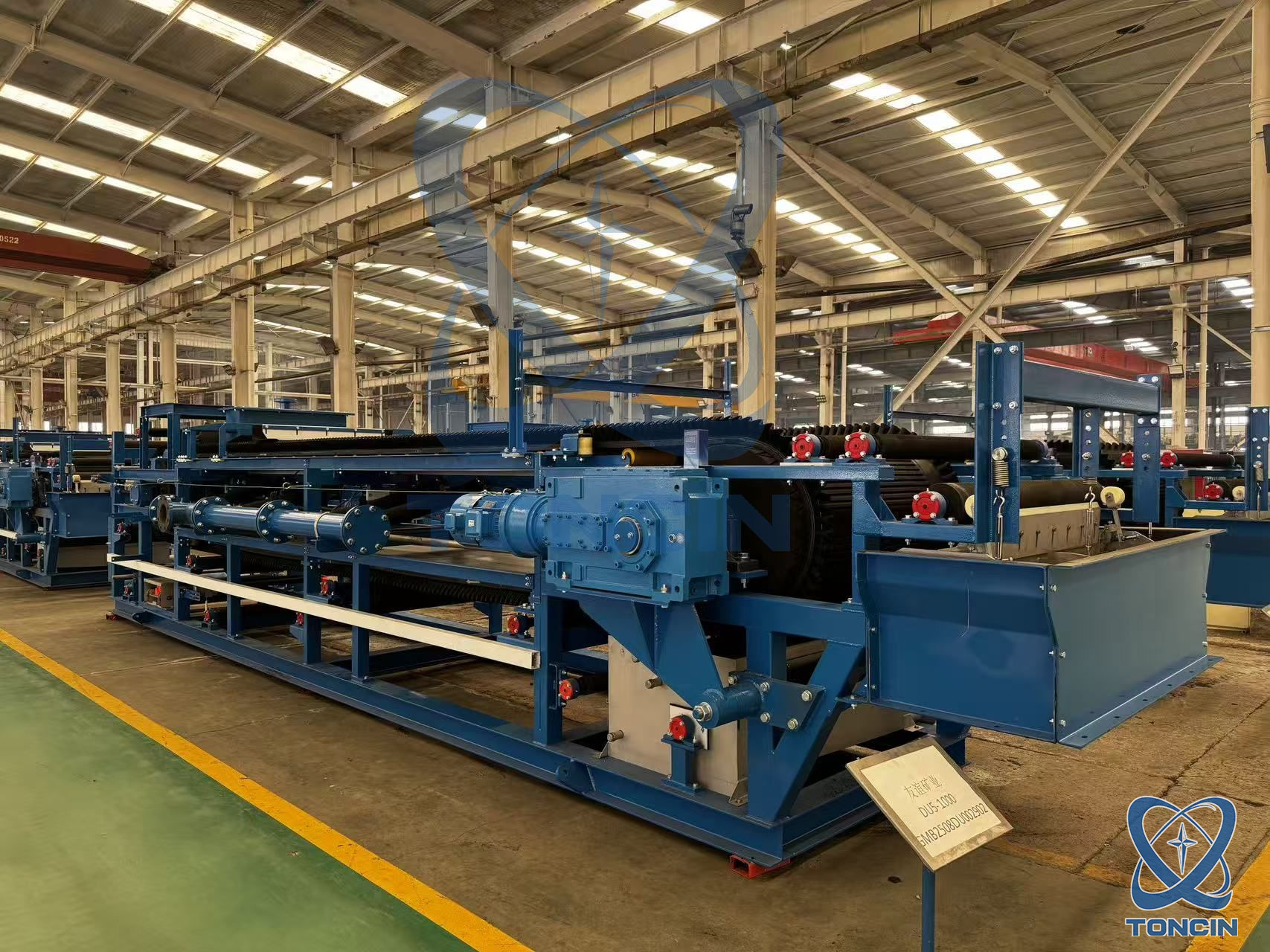

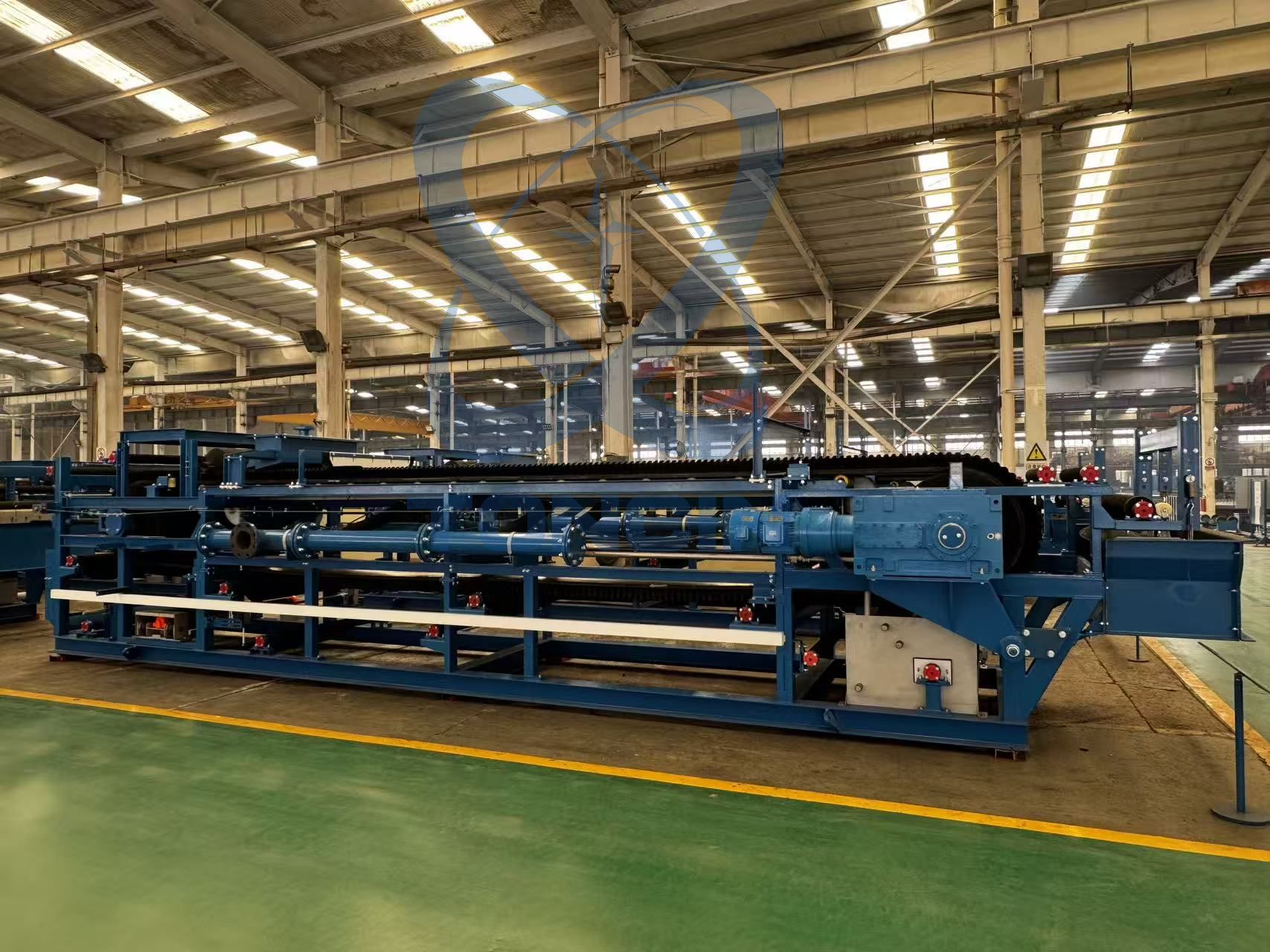

The rubber belt vacuum filter is a high-efficiency filtration and solid-liquid separation equipment independently developed by our company on the basis of the introduction of foreign technology of similar products.
| Quantity: | |
|---|---|
DU Belt Filter
Toncin
Brief introduction:
In industries such as chemicals, mining, and minerals processing, process conditions are often extremely challenging. Facing high-concentration, high-viscosity, or highly corrosive materials, reliable dewatering and product recovery are directly critical to maintaining continuous and efficient production. Addressing this industry pain point, TONCIN has leveraged decades of technical expertise in horizontal vacuum belt filter (DU) technology to deliver a filtration solution that combines high throughput capacity with low residual cake moisture, while effectively controlling operating costs and helping customers achieve both economic efficiency and production stability.
Product Description
A Cost-Effective Solution for Dewatering and Product Recovery
TONCIN horizontal vacuum belt filters offer multiple advantages for process plants:
High-Throughput Dewatering and Cake Washing: Outstanding processing capacity per unit area, suitable for large-scale continuous production.
Reduced Downtime Due to Innovative Design: Optimized critical structures enable convenient maintenance and ensure long-term stable operation.
Global Testing Facilities: Leveraging comprehensive testing platforms to validate process parameters in advance and reduce project risks.
Increased Flexibility Due to Modular Design: Flexible configuration based on site conditions and process requirements, offering strong adaptability.
High-Throughput Dewatering and Cake Washing Application Example
A horizontal vacuum belt filter with a filtration area of 20 square meters has been successfully applied in a graphite concentrate dewatering project, demonstrating exceptional high-throughput processing capability and stable cake washing performance.
Engineering Solutions for Optimized Designs
TONCIN possesses fully integrated engineering capabilities, utilizing advanced engineering tools to achieve precise design and ensure optimized equipment sizing and footprint. Key engineering capabilities include:
CFD Analysis
3D Modeling
FEA Analysis
Additionally, a wide variety of construction materials combined with a bolted frame structure enable modular customization according to specific customer requirements, balancing strength, corrosion resistance, and installation convenience.
Washing Applications: High Extraction Efficiency Driving Profitability
In washing processes for materials such as gold, uranium, phosphoric acid, copper, and alumina, extraction efficiency directly impacts project profitability. TONCIN horizontal vacuum belt filters utilize plug flow displacement and multi-stage counter-current washing across the filtration area to achieve wash efficiencies exceeding 99.8%, providing reliable support for efficient recovery of high-value materials.
Materials of Construction: Designed for Demanding Conditions
For complex operating conditions involving corrosive, abrasive, and high-temperature filtration applications, TONCIN offers a full range of material solutions—from high-quality stainless steels to FRPs and plastics. The filter frames are manufactured using open channel and angle sections, effectively avoiding the liquid accumulation and corrosion issues commonly associated with box-section structures in corrosive environments, thereby significantly extending equipment service life.
Cake Discharge and Transporter Belt
In most applications, cake discharge occurs spontaneously by gravity. For wet, sticky products, TONCIN can equip the filter with cake scrapers or water slides to ensure complete cake removal and prevent material buildup that could affect operational efficiency. TONCIN has successfully manufactured extra-wide filters utilizing 4.8-meter rubber belts, with belt materials selected from natural rubber, SBR, neoprene, or EPDM based on process requirements. All TONCIN transporter belts feature a carcass-free center zone design, preventing contact between the filtrate and the belt carcass, effectively resisting corrosion and significantly extending belt service life.
Typical Cake Discharge
The illustration shows typical cake discharge performance of the horizontal vacuum belt filter under standard operating conditions.
Innovative Technology: Vacuum Box Lifting Device
To further enhance equipment performance and maintenance convenience, TONCIN has developed the vacuum box lifting device. This device simplifies the traditionally high-risk task of vacuum box maintenance and can be retrofitted to filters of any brand or size, reducing vacuum box maintenance downtime by over 30%.
Dual Cloth Tensioning System
TONCIN filters are designed with a dual cloth tensioning system, incorporating both static and dynamic tensioning. This system maintains efficient operation even if the filter cloth experiences abnormal stretching, while the use of movable rollers significantly simplifies filter cloth installation and replacement, reducing maintenance complexity.
Static Cloth Tensioning System
Dynamic Cloth Tensioning System
Key Applications
Dewatering Applications
General tailings
Gypsum
Phosphate rock
Coal fines
Magnetite
Iron ore
Lithium
Washing Applications
Leached materials
Zinc
Copper/cobalt
Nickel
Gypsum
Flue gas desulfurization (FGD)
Pulp washers
Product Specification:
Filtration Area (m2) | Filtration width(mm) | Filtration Length (m ) | Weight (T) | Outline Size L×W×H (m) | Filtration Area (m2) | Filtration width(mm) | Filtration Length(m ) | Weight (T) | Outline Size L×W×H (m) |
DU-2 | 500 | 4 | 3.0 | 7.82×2×2 | DU-25 | 2500 | 10 | 22 | 14.5×4.8×2.2 |
DU-2.5 | 5 | 3.2 | 8.82×2×2 | DU-30 | 12 | 25.3 | 16.5×4.8×2.2 | ||
DU-3 | 6 | 3.4 | 9.9×2×2 | DU-35 | 14 | 27.4 | 18.5×4.8×2.2 | ||
DU-5 | 10 | 3.8 | 14.0×2.2×2 | DU-40 | 16 | 29.5 | 21.5×4.8×2.4 | ||
DU-4.8 | 800 | 6 | 5.0 | 10.05×2.5×2 | DU-45 | 18 | 31.6 | 23.5×4.8×2.4 | |
DU-6.4 | 8 | 5.5 | 12.05×2.5×2 | DU-50 | 20 | 38.6 | 25.6×4.8×2.4 | ||
DU-8 | 10 | 6.0 | 14.10×2.6×2 | DU-33.6 | 2800 | 12 | 20.5 | 17.6×5.0×2.5 | |
DU-9.6 | 12 | 7.0 | 16.25×2.6×2 | DU-39.2 | 14 | 24.1 | 19.6×5.0×2.5 | ||
DU-5 | 1000 | 5 | 5.3 | 8.87×2.6×20 | DU-36 | 3000 | 12 | 22 | 17.6×5.5×2.8 |
DU-6 | 6 | 5.8 | 10.5×2.6×2 | DU-42 | 14 | 24 | 19.6×5.5×2.8 | ||
DU-8 | 8 | 6.3 | 12.5×2.8×2 | DU-48 | 16 | 28 | 21.6×5.5×2.8 | ||
DU-10 | 10 | 6.8 | 14.5×2.8×2 | DU-54 | 18 | 30.6 | 23.6×5.5×2.8 | ||
DU-12 | 12 | 7.3 | 16.5×2.8×2 | DU-60 | 20 | 35.2 | 25.6×5.5×2.8 | ||
DU-14 | 14 | 7.8 | 18.5×2.8×2 | DU-44.8 | 3200 | 14 | 35.3 | 19.5×5.7×3.1 | |
DU-7.8 | 1300 | 6 | 7.2 | 10.4×3.15×2 | DU-48 | 15 | 36.2 | 20.5×5.7×3.1 | |
DU-10.4 | 8 | 8.3 | 12.4×3.15×2 | DU-51.2 | 16 | 37.7 | 21.5×5.7×3.1 | ||
DU-13 | 10 | 9 | 14.4×3.15×2 | DU-57.6 | 18 | 40.1 | 23.5×5.7×3.1 | ||
DU-15.6 | 12 | 10.5 | 16.4×3.15×2 | DU-64 | 20 | 42.5 | 25.5×5.7×3.1 | ||
DU-18.2 | 14 | 11.5 | 18.4×3.15×2 | DU-72 | 22.5 | 52.4 | 28.5×5.7×3.1 | ||
DU-20.8 | 16 | 12.5 | 20.4×3.15×2 | DU-72 | 4000 | 18 | 56.2 | 24.0×7.1×3.3 | |
DU-14.4 | 1800 | 8 | 12.7 | 12.6×4×2.2 | DU-80 | 20 | 58.8 | 26.0×7.1×3.3 | |
DU-18 | 10 | 13.7 | 14.6×4×2.2 | DU-88 | 22 | 66.6 | 28.0×7.1×3.3 | ||
DU-21.6 | 12 | 15.3 | 16.6×4×2.2 | DU-96 | 24 | 69.4 | 30.0×7.1×3.3 | ||
DU-25.2 | 14 | 16.6 | 18.6×4×2.2 | DU-104 | 26 | 72.2 | 32.0×7.1×3.3 | ||
DU-28.8 | 16 | 17.9 | 20.6×4×2.2 | DU-90 | 4500 | 20 | 72 | 26.5×7.5×3.6 | |
DU-16 | 2000 | 8 | 14.2 | 12.7×4.2×2.2 | DU-99 | 22 | 75.2 | 28.5×7.5×3.6 | |
DU-20 | 10 | 15.4 | 14.7×4.2×2.2 | DU-108 | 24 | 78.4 | 30.5×7.5×3.6 | ||
DU-24 | 12 | 17.2 | 16.7×4.2×2.2 | DU-117 | 26 | 81.6 | 32.5×7.5×3.6 | ||
DU-28 | 14 | 18.7 | 18.7×4.2×2.2 | DU-126 | 28 | 84.8 | 34.5×7.5×3.6 | ||
DU-32 | 16 | 20.2 | 20.7×4.2×2.2 | DU-135 | 30 | 88 | 36.5×7.5×3.6 | ||
DU-36 | 18 | 21.7 | 22.7×4.2×2.2 | DU-144 | 32 | 93 | 38.5×7.5×3.6 |
Product Advantages:
To continuously complete feed filtration, filter cake washing, blotting, unloading, filter cloth regeneration and other process operations
The filtrated stock and filter cake washing solution in different sections can be collected in stages and the advection washing and countercurrent washing can be realized.
The modular design of overall structure is flexible for assembly and convenient for transport and installation.
The control system with DCS technology can realize onsite and remote automation.
Service Support
Whole Technological Design
Toncin determines reasonable plans and selections by conducting more systematic laboratory tests, semi-industrialization tests and theoretical analysis calculations and adopting appropriate methods in light of the actual problems faced by customers. And it determines specific parameters through laboratory tests and semi-industrial tests.
Project Construction
Toncin can provide customers with integrated project services for its perfect project management system and experienced high-quality team and can also provide customers with its best services in achieving the ultimate project goal by carrying out the management work on the project quality, schedule, safety, cost, procurement, information files, organization and coordination etc. according to customer’s contractual documents. Toncin contracts the design, procurement, construction and trials etc. for the entire process or some certain stages of the construction project according to the contract and takes full liability for the quality, safety, duration and cost etc. of the contracted project.
Response Time and After-sales Services
If any failure due to a defect has occurred during the warranty period, our company has given the following response and promise: to respond within 12 hours and rush to the domestic scene within 72 hours. With a rigorous and efficient service architecture, diverse and flexible service and response means, Toncin is capable of providing response service up to 7* 24 hours to ensure that users can get help at any time during the warranty period.
