Vertical Automatic Filter Press Toncin

Name: Vertical Automatic Filter Press Toncin
Brand: Toncin
Rating: 5.0 (91 reviews)

HVPF vertical automatic press filter is the most advanced filter that the world has ever get. Vacuum has a limit, but Pressure not. HVPF vertical automatic press filter use air or water to form a huge pressure difference on both sides of filter cloth to achieve very efficient separation of solid and liquid.

Quantity:
Availability:





Inquire Add to Basket

Model:
HVPF Filter Press
Brand:
Toncin

Product Description

Product Introduction:

Introducing our company's latest creation, the HVPF Vertical Fully Automatic Pressure Filter. This state-of-the-art device is not only advanced but also energy-saving and environmentally friendly. Its main purpose is to separate solid and liquid substances effectively, using the power of the pump, the force of gravity, and the compression of the rubber diaphragm. With its versatility, the HVPF Vertical Fully Automatic Pressure Filter is widely used in industries like metallurgy, mining, chemicals, coal chemicals, titanium dioxide, papermaking, food, pharmaceuticals, and environmental protection. Count on our expertise and make an investment in the HVPF Vertical Fully Automatic Pressure Filter for outstanding outcomes.

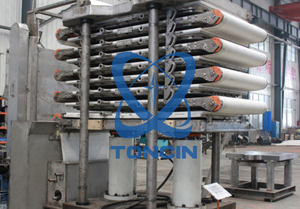

Tower Vertical Press Filter

Product Application:

HVPF vertical automatic press filter can be applied in mining, metallurgy, chemical industry, pharmacy and food industries. It is a kind of high capacity, energy-saving, automatic solid-liquid separation machine.

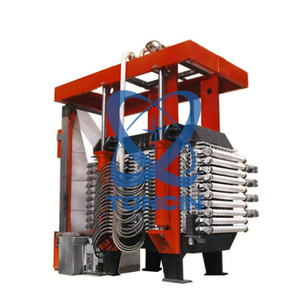

Tower Vertical Press Filter

Supply Range and Requirements on Local Installation:

(1) The HVPF vertical automatic press filter is an advanced filtration system that outperforms all others globally. Unlike filters that rely on vacuum, this one utilizes air or water to generate a strong pressure difference on both sides of the filter fabric, resulting in highly efficient separation of solids and liquids.
(2) To operate the filter, simply shut the filter plate and pump the slurry into the filter chamber via the slurry pipes. Gravity then allows a portion of the filtrate to pass through the filter fabric and enter the filtrate chamber. Subsequently, high pressure water compels the rubber diaphragm to expel the filtrate from the filter cake. Once the process is finished, the filter fabric and filter cakes are discharged from both sides of the filter fabric.
(3) The HVPF vertical automatic press filter consists of various components, including the main unit, hydraulic station, water station, cleaning system, and control system.
(6) To install the machine, it must be placed on a solid, flat, reinforced concrete or steel rack. The foundation size and related dimensions should be consulted prior to installation, and the depth of the groundwork should be determined by the customer depending on the specific conditions. The host should be suspended by professional technicians to avoid any impact or scratching, and a grad enter should be used to adjust the host duration and ensure stability.

Product Specifications:

Model	Filtrating Area(m2)	Overall Dimension m (L×W×H)	Filtrating Plate Quantity	Volume(m3) (H=45mm)	Weight (T)	Hydraulic power (KW)	Filter plate specification (mm)	Width of filter cloth
Model	Filtrating Area(m2)	Overall Dimension m (L×W×H)	Filtrating Plate Quantity	Volume(m3) (H=45mm)	Weight (T)	Hydraulic power (KW)	Filter plate specification (mm)	Width of filter cloth
HVPF-1	1	2.5×1.5×2.0	2	0.05	8	7.5	1000*550	0.7
HVPF-2	2	2.5×1.5×2.2	4	0.09	9	7.5	1000*550	0.7
HVPF-3	3	3.5×2.5×2.2	2	0.16	14	11	1750*900	1.05
HVPF-4	4	3.5×2.5×2.3	4	0.27	15	11
HVPF-9	9	3.5×2.5×2.5	6	0.41	16	11
HVPF-12	12	3.5×2.5×2.7	8	0.54	17	11
HVPF-15	15	3.5×2.5×2.9	10	0.68	18	11
HVPF-18	18	3.5×2.5×3.1	12	0.81	19	11
HVPF-21	21	3.5×2.5×3.3	14	0.95	21	11
HVPF-24	24	3.5×2.5×3.4	16	1.08	22	11
HVPF-27	27	3.5×2.5×3.6	18	1.22	23	11
HVPF-15	15	5.1×3.7×3.3	6	0.68	37	22	2500*1020	1.15
HVPF-20	20	5.1×3.7×3.6	8	0.9	39	22
HVPF-25	25	5.1×3.7×3.9	10	1.13	42	22
HVPF-30	30	5.1×3.7×4.2	12	1.35	43	22
HVPF-35	35	5.1×3.7×4.5	14	1.58	44	22
HVPF-40	40	5.1×3.7×4.8	16	1.8	45	22
HVPF-45	45	5.1×3.7×5.1	18	2.03	46	22
HVPF-50	50	5.1×3.7×5.4	20	2.25	48	22
HVPF-60	60	6.9×4.5×5.4	10	2.7	97	37	4010*1500	1.7
HVPF-72	72	6.9×4.5×5.8	12	3.24	100	37
HVPF-84	84	6.9×4.5×6.2	14	3.78	104	37
HVPF-96	96	6.9×4.5×6.5	16	4.32	110	37
HVPF-108	108	6.9×4.5×6.9	18	4.86	112	37
HVPF-120	120	6.9×4.5×7.2	20	5.4	118	37
HVPF-132	132	6.9×4.5×7.6	22	5.94	120	37
HVPF-144	144	6.9×4.5×7.9	24	6.48	123	37
HVPF-156	156	6.9×4.5×8.3	26	7.02	126	37
HVPF-168	168	6.9×4.5×8.6	28	7.56	130	37
HVPF-144	144	9.2×5.5×6.8	18	6.48	142	67	6020*1500	1.7
HVPF-162	162	9.2×5.5×7.2	18	7.29	147	67
HVPF-180	180	9.2×5.5×7.5	20	8.1	150	67
HVPF-198	198	9.2×5.5×7.8	22	8.91	160	67
HVPF-216	216	9.2×5.5×8.2	24	9.72	166	67
HVPF-234	234	9.2×5.5×8.5	26	10.53	172	67
HVPF-252	252	9.2×5.5×8.8	28	11.34	180	67
HVPF-270	270	9.2×5.5×9.2	30	12.15	190	67

Working Process:

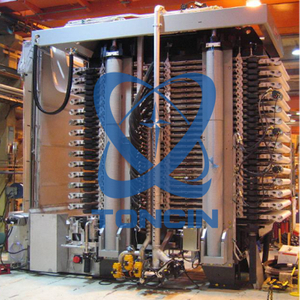

Tower Vertical Press Filter

(1) Filtering stage: when the filter plate closed, the slurry is pumped into filter chamber through slurry pipe. The filtrate enter into the filtrate chamber through filter cloth, and get into filtrate manifold through filtrate tube, meanwhile, the filter cake is formed in the filter chamber.
(2) Extrusion: the high pressure water enters into membrane through the tube and make the membrane extrudes towards filter cake to make the filtrate of the filter cake extrude out.
(3) Cake washing: the washing water is pumped into filter chamber by slurry pipe, after washing the cake and through cloth flow into the discharge pipes.
(4) Air drying: the air flow with water go through the filter cake, which can reduce the moisture of filter cake to the maximum and empty the filtrate chamber at the same time.
(5)Filter cake discharge: when the drying process finished, the driving parts drive the filter cloth to run and the filter cake discharges from both sides of filter cloth.

Main Features:

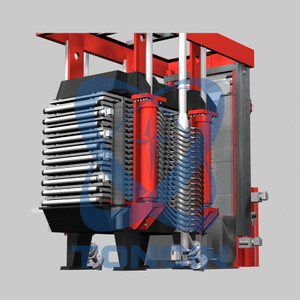

Tower Vertical Press Filter

(1) The filter plate's design includes a guide device for smooth operation.

(2) This equipment can perform filtering, extrusion, washing, drying, discharging, and filter cloth regeneration automatically and continuously.

(3) With a filter pressure of up to 2.0 Mpa, it is particularly effective for filtering sticky, small materials with low moisture content in the cake.

(4) Safety is the top priority for this equipment, even under high pressure. The hydraulic pressure system ensures that every plate locks securely, and every nozzle and diaphragm is carefully designed and inspected to prevent accidents.

(5) The equipment is equipped with PLC, touch screen, and automatic valves, requiring minimal labor input.

(6) Its compact structure takes up less floor space.

Product Details:

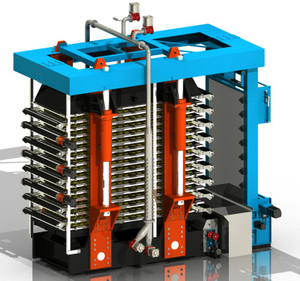

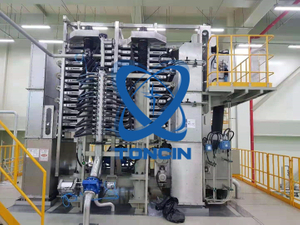

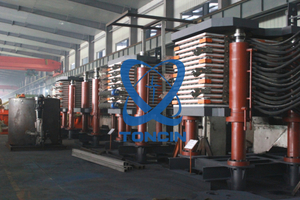

Tower Vertical Press Filter

Service Support

Whole Technological Design

Toncin determines reasonable plans and selections by conducting more systematic laboratory tests, semi-industrialization tests and theoretical analysis calculations and adopting appropriate methods in light of the actual problems faced by customers. And it determines specific parameters through laboratory tests and semi-industrial tests.
Project Construction

Toncin can provide customers with integrated project services for its perfect project management system and experienced high-quality team and can also provide customers with its best services in achieving the ultimate project goal by carrying out the management work on the project quality, schedule, safety, cost, procurement, information files, organization and coordination etc. according to customer’s contractual documents. Toncin contracts the design, procurement, construction and trials etc. for the entire process or some certain stages of the construction project according to the contract and takes full liability for the quality, safety, duration and cost etc. of the contracted project.

Response Time and After-sales Services

If any failure due to a defect has occurred during the warranty period, our company has given the following response and promise: to respond within 12 hours and rush to the domestic scene within 72 hours. With a rigorous and efficient service architecture, diverse and flexible service and response means, Toncin is capable of providing response service up to 7* 24 hours to ensure that users can get help at any time during the warranty period.
