Product Introduction:

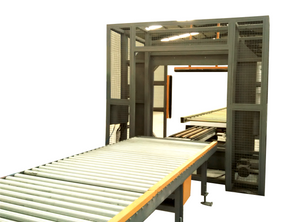

DS1800, It is applied for long, square product’s wrapping. Widely used for profile, aluminium, board, pipe, textile, construction, steel industry etc., elegant wrapping, anti-distant moisture, stable and safe performance, easy operation, it is your best choice.
Product Specifications:
Model | DS1800 |
Ring size | Φ1800mm |
speed | 15-25rpm |
Wrapping size(max) | 1200*1200mm(W*H) |
Wrapping length | ≥2m |
Wrapping speed | 2-20m/min |
Power | 380V/50HZ/2.2KW |
*Machine can be specially made according to your requirements.
Product Details:
1. Ring size can be customized
We can customize the rotary ring size according to the customer's demand, which can meet the rotary of the smallest and most slender cargo packaging, but also can meet the requirements of bulk heavy cargo wrapping.
2.Fully Automatic packaging technology
Automatic film clamping
Automatic detection of goods
Pre-stretch film carriage
Automatic film feeding
Photocell sensor is adopted for setting packing position
Maximum up to 350% pre-stretch rate.
3.Pneumatic top platen
Pneumatically driven pressing devices effectively hold the products during wrapping.
4.Conveyor lines can be freely matched
Whether it is power transmission line, no power transmission line, dum conveyor line, belt conveyor line can be used with.
5.Special design with holder
The holder to help protact goods wrapping succefully
6. Operational panel
PLC control, touch screen user interface.
Rotation speed and conveyor speed variable, overlapping width could be adjusted according to requirements.
