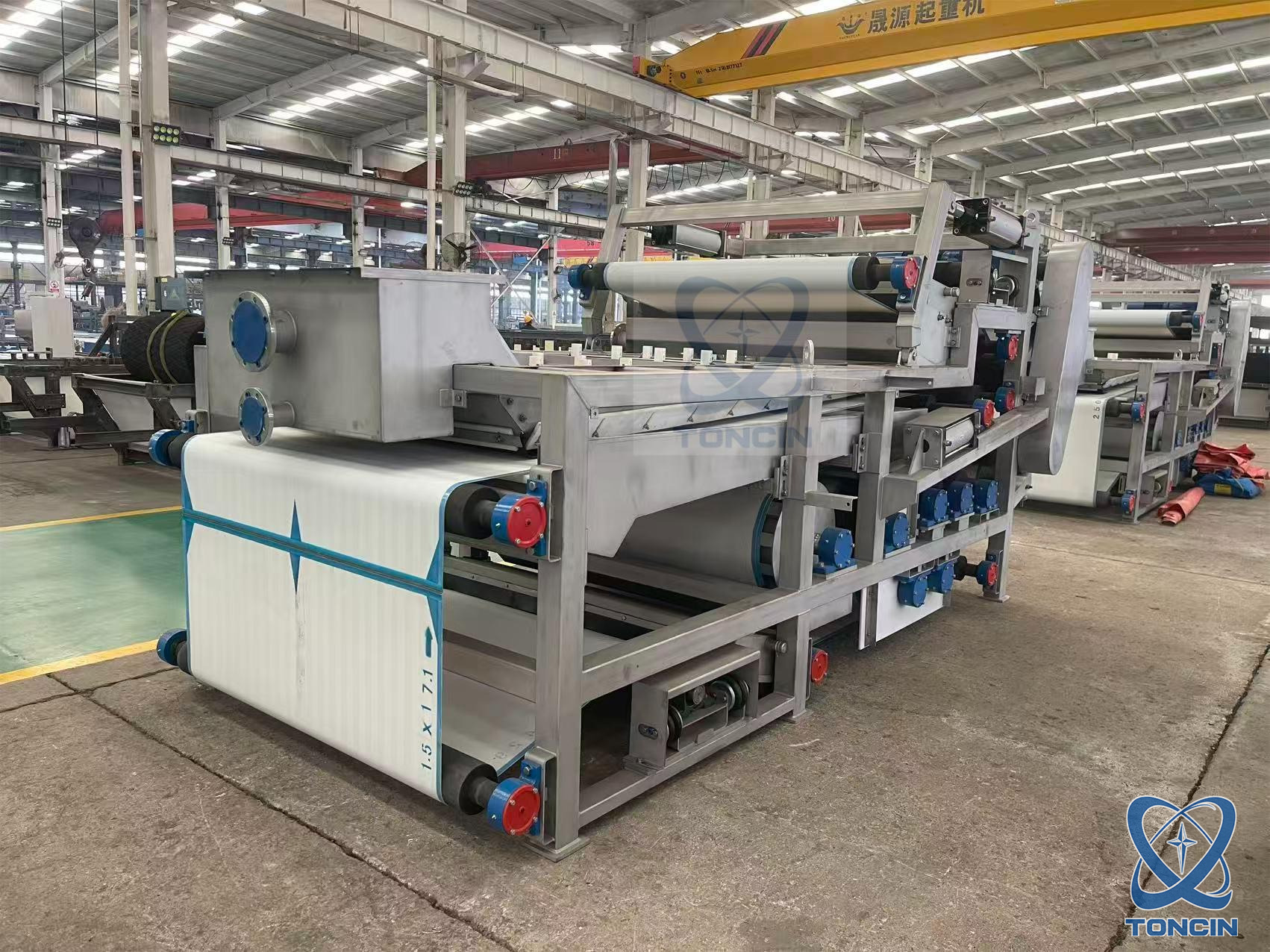

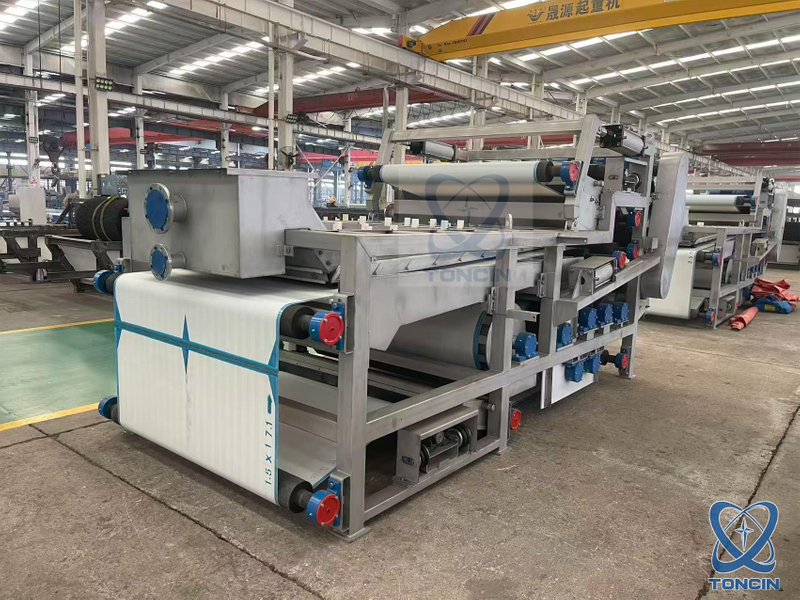

The belt filter press is a highly efficient solid-liquid separation equipment based on the principles of chemical flocculation contact filtration and mechanical extrusion. It is gaining increasingly widespread recognition across various industries due to its series of advantages, including simple process flow, high automation, continuous operation, easy control and operation, and adjustable working procedures. Furthermore, when used in conjunction with a gravity thickener, it can eliminate the need for a thickening tank for the treated material, thereby saving construction costs to some extent. Currently, this equipment is widely used for sludge dewatering in industries such as municipal sewage, textile dyeing and printing, electroplating, papermaking, leather, brewing, food processing, coal washing, petrochemicals, chemicals, metallurgy, pharmaceuticals, and ceramics. It is also suitable for solid-liquid separation or liquid leaching processes in industrial production.
Technical Features
DYZ Belt Filter Press is suitable for sludge dewatering systems in large-scale water treatment projects and for material dewatering in industrial and mining enterprises under various harsh conditions.
1. High Structural Rigidity, Stable Operation, Low Noise Level.
2. Equipped with Advanced Pre-thickening Devices for Effective Sludge Flocculation and Low Operating Costs.
3. The Gravity Dewatering Zone Features an Advanced Distributor for Even Material Spreading, Extending Filter Belt Life.
4. Extra-long Gravity and Wedge Dewatering Zones Ensure Thorough Preliminary Dewatering, Preventing Material Overflow in the Press Zone.
5. Scientifically Arranged Roller System Allows Separate and Uninterrupted Drainage in the Gravity, Wedge, and Press Dewatering Stages.
6. Large Diameter Ratio of Press Rollers Enhances Dewatering Efficiency, Resulting in High Processing Capacity with Energy Savings.
7. Fully Continuous Operation from Feeding to Cake Discharge. Highly Automated with Optional PLC Interface for Centralized Computer Control.
8. Drive System Utilizes Mechanical or Frequency Conversion Stepless Speed Regulation, Offering Wide Adjustable Range and Strong Adaptability.
9. Reliable Backwash System Ensures Consistent Dewatering Performance of the Filter Belt.
10. Pneumatic Tensioning and Automatic Tracking Devices Guarantee Safe and Stable Filter Belt Operation.
11. Safe and Reliable Operation with Infrared Safety Guards and Comprehensive Emergency Stop Systems.
12. Available with Various Filter Belt Specifications to Suit Different Materials, Ensuring High Filtration Precision.
Product Parameters:
Operating Principle:
Preparation stage.
After flocculation, sludge will be distributed to the filter cloth. Much water will separate with floc under gravity. The efficiency of the preparation depend on filter cloth, sludge and flocculation.
Wedge pre-press dewatering stage
After gravitational dewatering, flow ability will be much lower but still cannot be pressed by roller. Wedge pre-press dewatering will remove surface water and make the flow ability to a certain condition which ensure sludge will be pressed properly.
Squeezing dewatering stage
Then sludge will be conveyed to squeezing roller system. The roller’s size gradually be smaller meaning while, the outside pressure being larger.
Why Choose Our Belt Filter Press?
Lower Total Operating Costs
Reduced Chemical Use: Advanced flocculation systems and optimized dewatering paths significantly cut down on flocculant (PAM) consumption.
Savings on Water & Power: Efficient backwash systems and scientific roller press design lower water usage for cleaning and reduce drive power consumption.
Lower Labor Costs: High automation (auto-tracking, tensioning, cake discharge) and durable design greatly decrease daily operational and maintenance demands.
More Stable and Reliable Performance
Robust & Durable: The core structure uses heavy-duty design and high-strength materials (e.g., stainless steel, rubber-coated rollers), ensuring long-term stable operation in harsh conditions with low failure rates.
Intelligent Self-Protection: Integrated pneumatic auto-tracking, infrared safety guards, and emergency stop systems effectively prevent belt misalignment, damage, and personnel accidents, ensuring safe and continuous production.
Superior Dewatering Results & Processing Capacity
Drier Cake: Unique multi-stage dewatering design featuring "extended gravity zone + wedge zone + high-pressure roller zone" achieves pressures up to 12 bar, ensuring lower sludge cake moisture content and reducing disposal costs.
Higher Throughput: Scientifically arranged roller systems and optimized belt speed control enable greater processing capacity per unit time and higher overall efficiency.
High Flexibility & Smart Control
Customizable Configuration: Can be equipped with different filter belt specifications and pre-treatment devices based on your specific material characteristics (e.g., municipal sludge, industrial waste) and precision requirements.
Easy Control: Supports variable frequency drive for stepless speed regulation and PLC interfaces, allowing for easy integration into central control systems for intelligent management and remote monitoring.
Comprehensive Professional Support
Proven Expertise: Our products have been successfully applied in dozens of industries (e.g., municipal, dyeing & printing, papermaking, chemical), backed by extensive case studies, enabling us to provide you with mature process solutions.
Full-Cycle Service Guarantee: We offer complete lifecycle technical support—from solution design, installation, and commissioning to operator training and after-sales maintenance—ensuring you have no post-purchase worries.
In summary, our equipment is not just an efficient dewatering machine; it is a solution dedicated to helping you "reduce costs, improve efficiency, and achieve stable, worry-free operation."
