Reel stretch wrapper, wrap the cylindrical goods in all directions. It is helpful for storage, transportation etc. Dust-proof, moisture-proof .reduce wrapping costs and improve efficiency.

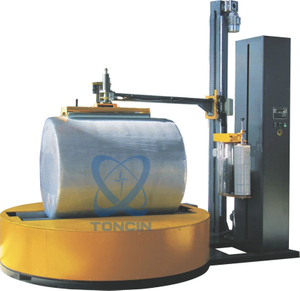

DY2000F, big reel stretch wrapper is mainly for cylindrical goods wrapping in axial direction, it realizes the whole wrapping.it is good for storage,transportation,dust proof, moisture proof etc. ,reduce wrapping costs effectively, improve wrapping efficiency.
Technical parameter:
Wrapping size | (500-1500)*(500-1600)mm(diameter*length) |
Dimension | 2900*2000*2200mm(L*W*H) |
Turntable dianmeter | 2000mm |
Turntable height | 530mm |
Voltage | 2.5kw/AC220V/50HZ |
Weight | 1080kg |
Wrapping efficiency | 20-40палеты/hour |
Turntable speed | 0-12rpm, adjustable |
Control system | PLC, wrapping layer, time adjustable, pre-stretch 250% |
Component | Film carriage, roller and driven system, top platen(optional) |
Pneumatic system | 0.6-0.8Mpa, 1000mL/min |
*Machine can be specially made according to your requirements.
Product's Detail：
1.Roller and driven system
Designed for packing rolls of paper, film, dipped tire cord fabric and similar materials manufactured in reels, reel axial wrapping across the cylindrical diameter then along the longitudinal axis.
2.Saving Film Consumption
Maximum up to 250% pre-stretch rate.
Maximize the value of each meter of stretch film Standard constant releasing film Fixed-point wrapping and quantitative use film.
3.Electric top platen(optional)
adopts electric top platen, compact structure, easy installation and maintenance .This model is simple and safe. Convenient, reliable, stable.
4.Slewing Bearing Turntable
Use the slewing bearing turntable ,max load weight 2000KG ,more quiet and lower vibration compare with the chain drive turntable.
5.Lifting column
Double chain structure,
adjustable lifting speed frequency conversion
6. Operational panel
PLC control,
Frequency conversion speed regulation,
touch screen operation
Service Support
Whole Technological Design
Toncin determines reasonable plans and selections by conducting more systematic laboratory tests, semi-industrialization tests and theoretical analysis calculations and adopting appropriate methods in light of the actual problems faced by customers. And it determines specific parameters through laboratory tests and semi-industrial tests.
Project Construction
Toncin can provide customers with integrated project services for its perfect project management system and experienced high-quality team and can also provide customers with its best services in achieving the ultimate project goal by carrying out the management work on the project quality, schedule, safety, cost, procurement, information files, organization and coordination etc. according to customer’s contractual documents. Toncin contracts the design, procurement, construction and trials etc. for the entire process or some certain stages of the construction project according to the contract and takes full liability for the quality, safety, duration and cost etc. of the contracted project.
Response Time and After-sales Services
If any failure due to a defect has occurred during the warranty period, our company has given the following response and promise: to respond within 12 hours and rush to the domestic scene within 72 hours. With a rigorous and efficient service architecture, diverse and flexible service and response means, Toncin is capable of providing response service up to 7* 24 hours to ensure that users can get help at any time during the warranty period.
