A tower press filter works by stacking chambers on top of each other. These chambers squeeze and separate solids from liquids in industrial slurries. The system uses automated hydraulic compression. This helps get very dry cakes and separates things well. It is used a lot in big minerals processing or wastewater treatment. A tower press filter saves space. It often needs only half the floor area compared to horizontal presses.
The market for these filters is growing fast. People expect use to almost double from 2026 to 2033. This happens because industries need more filters, technology is better, and rules for the environment are stricter.
A tower press filter has chambers stacked on top of each other. It separates solids from liquids very well. This makes it good for use in factories.
The filter saves space because of its design. It works with high pressure. This gives drier cakes and cleaner liquids.
Automation helps the filter work better. It makes cycles faster and lowers labor costs. The results stay the same each time.
Tower press filters can be used in many ways. They are found in mining, food processing, and cleaning wastewater.
You need to clean the plates often. You should check the hydraulic system too. This keeps the filter working well and helps it last longer.

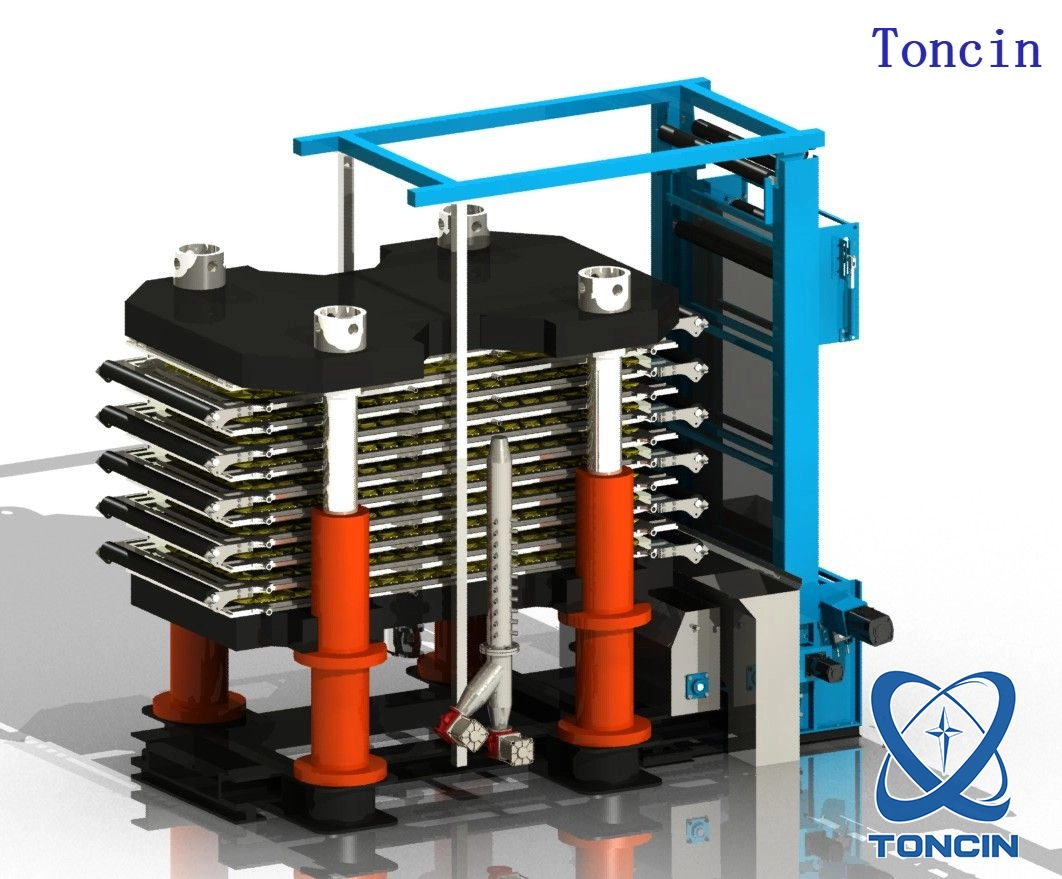

A tower press filter is built to separate solids from liquids well. It has three main parts. These are the vertical plate stack, filtration media, and hydraulic system. Each part helps the filter press work better.
The vertical plate stack stands up inside the filter. Plates are stacked one on top of another. This lets the filter use more pressure. It also makes the cakes drier and the liquid cleaner.
The plates are stacked vertically. This lets the filter use higher pressure. It also makes the cakes drier and the liquid cleaner. The strong design helps the filter handle big loads. It works well even with high pressure. This makes solid-liquid separation work better.
Vertical stacks save space compared to horizontal ones. They also help separate solids and liquids better. The plates hold the filter belt. The belt moves in a "Z" shape between the plates.
Here is a table that shows the main parts and what they do:
Component | Contribution to Filtration Process |
|---|---|
Filter Belt | Helps filter work well and stay stable; moves in a "Z" shape. |
Filtration Stage | Traps solid bits; picking the right one helps a lot. |
Diaphragm Pressing | Handles strong pressure; needs tough, steady material. |
Cake Discharge | Makes it easy to take out and clean cakes; smooth surface helps. |
Air Permeability | Balances speed and catching particles; changes how well it works. |
Material Quality | Good materials last longer and filter better. |
Filtration media sits between the plates. You need to choose the right material for your job. The media changes how well the filter works and how easy it is to remove the cake. Here is a table to help you pick:
Material | Acid-Base Suitability | Temperature Suitability | Filter Cake Characteristics |
|---|---|---|---|
Polyester | Works well with weak acids | Handles high heat | Smooth cake, works very well |
Polypropylene | Great for strong acids and alkalis | Up to 75°C | Cake is less sticky, easy to remove |
Nylon | Good for strong alkalis, not acids | Handles high heat | Needs careful picking for cake type |
Modern tower press filters use strong fabrics that do not stretch much. These last longer and keep filtering steady. New materials also fight wear and chemicals better.
The hydraulic system runs the filter press. It moves the plates and pushes them together. This helps separate solids from liquids. You can set the system to work by itself. This gives you the right pressure and timing for each job.
New hydraulic systems are safer and work better. Some use less water, oil, and power. They are easier to fix and can run by themselves.
Filters well with new materials
Strong and does not stretch much
Fights wear and tough chemicals
A tower press filter is strong and works well for hard jobs. It saves space, works fast, and is easy to use.
The filtration process in a tower press filter happens in steps. Each step helps separate solids from liquids. It also helps remove water from the mixture.
First, you get the filter press ready to use. The plates close tightly to make a sealed space. Then, you pump slurry into the chambers. The slurry spreads out evenly inside. Pressure pushes the liquid through the filtration media. Solids stay behind and start to pile up.
Tip: Pressure can go as high as 2.0 MPa. High pressure helps separate small particles and gets more liquid out.
Here is what happens in order:
Close the plates to seal the chambers.
Pump slurry into the chambers.
Use pressure to push liquid through the filter media.
Solids collect and form a cake.
As more slurry goes in, solids build up and make a cake. The cake is usually 6 to 8 mm thick. The filter adds more pressure to squeeze the cake. This step removes even more water and makes the cake drier. The filter can handle particles from 1 to 300 microns.
Many things change how fast and even the cake forms. Mud thickness, the filtration media, and cake type all matter. If the slurry is thick, the cake forms faster but can get harder. Picking the right filtration media, like ceramic disks, helps make the cake more even.
Feature | Description |
|---|---|
Filter Pressure | Up to 2.0 MPa |
Cake Thickness | 6 - 8 mm |
Particle Size Range | 1 - 300 μm |
Feed Concentration | 0.1 - 25+ % w/w |
Efficiency | High pressure gets out more water, even from sticky or fine materials |
Note: After feeding, the filter uses a diaphragm squeeze. This step helps remove more water and makes the cake drier.
When the cake is thick and dry enough, it is time to remove it. The filter opens the plates. The cakes fall out, often with automatic help. Some filters use vibrating plates, moving belts, or scrapers to help the cakes come out.
Method | Description |
|---|---|
Membrane recessed plate filter press | Squeezes cakes dry and helps them come out easily. |
Automatic pressure filter (APF) | Uses moving belts to remove cakes. |
Cloth spreader with vibrator | Shakes cakes loose, but may need someone to help. |
Fully automatic cloth spreader/scraper | Works with plate shifters for hands-free cake removal. |
After the cakes fall out, the filter cleans the cloth. This gets the filter ready for the next cycle. You can run the whole process automatically. This saves time and work.
Pro Tip: Good cake discharge keeps your filter working well and stops delays.
A tower press filter is a strong tool for hard jobs. It works well, removes water, and is easy to use. The process uses pressure and timing to give you great results every time.
You can make your tower press filter work better with automation. Automation and control systems help you run the filter press easily. These systems let you do less work and get better results. You do not have to watch the filter all the time. The system can do filtering, dewatering, washing, drying, and cake discharge for you.
Automation makes the filter press cycle faster and saves time.
Stronger pumps and better clarifying systems help filter and remove water.
Computer controls keep everything steady and safe.
You get cleaner and safer processes because the system works by itself.
Automation lowers costs and keeps the filter working the same way every time.
Modern tower press filters have new features that help even more. Here is a table that shows some of the best features you can get:
Feature | Description |
|---|---|
Fully Automated Operation | Runs all steps from filtering to cleaning without manual work. |
Energy Efficiency | Uses less energy than older filter presses. |
Reduced Labor | Needs fewer people to run, which saves money and time. |
Precision Design | Keeps the filter safe, even at high pressure. |
Hydraulic Control | Makes sure the filter works smoothly and reliably. |
High Capacity | Handles sticky or fine materials and gets cakes very dry. |
You can make your filter press work better by setting the right cycle timing. Each step—feeding, pressing, washing, drying, and cake discharge—needs the right amount of time. If the timing is too short, the filter may not remove enough water. If it is too long, you waste energy and slow things down.
Shorter cycles let you process more batches in less time.
Good timing helps you get drier cakes and cleaner liquid.
Automated systems can change cycle times for each batch, so you always get the best results.
Sometimes you may have problems like clogging or high energy use. Tower press filters fix these problems with smart design and automation. They handle sticky materials, use less power, and need less fixing. This keeps your filter working well and helps you reach your goals.
Tip: Use the control system to check and change your cycle timing. This will help you get the most from your filter press and keep things running well.
A tower press filter works very well. It finishes each cycle fast and makes cakes that are dry. This means you pay less to move and throw away the cakes. The cakes do not have much water in them. The filter stands up tall, so it does not use much floor space. You can fit more filters in your building. You also spend less money to run the filter. It does not break often and does not need many workers.
Here is a table that shows how well the tower press filter works:
Metric | Description |
|---|---|
Filtration cycle time | How long one cycle takes (30–60 minutes). |
How much water is left in the cake (goal: 20–30%). | |
Filtrate clarity | Shows how well solids and liquids are separated. |
Throughput | How much slurry is cleaned each hour (1,000–2,000 liters/hour). |
Filtration rate | How fast the filter works in m³/h/m². |
Solids capture efficiency | How many solids are caught (usually over 99.5%). |
You can watch the whole process from the ground. This makes it safer and easier to use. The filter washes both sides of the fabric with less water. This helps keep the filter working well and makes separation better.
Tower press filters are used in many jobs. They are good for separating solids and liquids in hard work. You see them in mining, chemical plants, food factories, and places that clean water.
Industrial Sector | Typical Applications |
|---|---|
Mining | Used for copper, gold, silver, zinc, lead, and sand. |
Chemical Processing | Used for titanium dioxide, pigments, catalysts, and methanol. |
Food Processing | Used for sugar, vegetable oil, and cornstarch. |
Wastewater Treatment | Used for sludge, sulfur removal, and cleaning dirty water. |
Pick a tower press filter if you need to clean lots of slurry or sticky stuff. This filter is strong and does a great job at separating solids and liquids.
Tower press filters are better than many other filters. They use less space, work more often, and can be made bigger by adding layers. This means you can clean more slurry without needing a bigger room.
Feature | TFP Tower Filter | Chamber Filter Press |
|---|---|---|
Space Requirement | Small (5x3x5m) | Bigger (6x4x3m) |
Operational Reliability | Works more (continuous) | Works less (batch) |
Capacity Scalability | Easy to add more layers | Only a little bigger |
You do not have to fix them much. Just keep the plates clean, check the hydraulic tracks, and look at the pressure unit. The filter does not need extra platforms or moving belts. It costs less to run and is simple to use.
Tip: If you want to separate solids from liquids fast and well, a tower press filter is a smart choice. It saves space, works well, and gives you great results.
Now you understand how a tower press filter works and why it is special.
Pressure pushes slurry through chambers with filter plates and cloths.
The filter quickly and easily separates liquids from solids.
You can find these filters in mining, cleaning dirty water, and making medicine.
They are cheap to run, simple to fix, and can work by themselves.
Think about what your process needs. A tower press filter might help you get cleaner results and use less space.
You see a tower press filter stand upright. This design saves space and lets you use higher pressure. You get drier cakes and cleaner liquid compared to many other filter types.
Yes, you can use a tower press filter for wastewater treatment. It removes solids from liquids very well. You get cleaner water and less waste to handle.
You should clean the filter plates and check the hydraulic system often. Watch for leaks or worn parts. Regular care keeps your filter working well and helps it last longer.
You can use a tower press filter for industrial wastewater. It handles tough slurries and sticky materials. You get reliable performance in factories and plants.
You can add a tower press filter to water treatment systems. It works after settling tanks or clarifiers. You get better solid-liquid separation and cleaner water for reuse or discharge.
