Pneumatically operated spillway gate (air bladder support gate)
The pneumatically operated spillway gate is a new type hydraulic structure, which can simultaneously satisfy the safety of retaining water and stepless adjustment of discharging water level.
Operation principle
1. Retaining water: inflated the air bladder, it will support the gate panel stand up, and realize retaining water.
2. Overflow: when the water level higher than the gate panel, the water flow and floater will pass on the gate panel. The air bladder will not destroy because of the gate panel protection.
3. Adjust the dam height: through adjust the inflated air pressure, to achieve the purpose of adjust the support angle of the gate panel, and finally control the water level.
4. Collapse: deflate the compressed air in the air bladder, the gate will collapse. The gate panel and air bag will next to the riverbed, the support system is much safer under the gate panel cover.
Gate panel
Material: stainless steel, carbon steel
Size: 5m or 6m per unit
Structure: made of steel panel above 16mm thickness, arc, reinforced ribs on the surface
Corrosion protection: thermal spray zinc and seal coating or polyurea material.
Air bladder
Material: Air bladder is made of tyre fabrics and special rubber.
Performances: W.P. 0.07-0.20MPa, designed pressure 1.0MPa, designed safety factor 8-10 times, out layer EPDM, aging resistant over 30 years.
Control system
Intelligent control system functions:
1. real-time dynamic display of operation status
2. intelligent fault alarm, easy for repair.
3. one key start-stop, simple operation
4. intelligent data analysis, optimize the operation and management.
5. intelligent PLC could realize the data transmission and local control.
6. monitoring the running status by mobile App is available.
7. remote monitoring could realize the unmanned control.
8. manual and automatic dual control.
Service Support
Whole Technological Design
Toncin determines reasonable plans and selections by conducting more systematic laboratory tests, semi-industrialization tests and theoretical analysis calculations and adopting appropriate methods in light of the actual problems faced by customers. And it determines specific parameters through laboratory tests and semi-industrial tests.
Project Construction
Toncin can provide customers with integrated project services for its perfect project management system and experienced high-quality team and can also provide customers with its best services in achieving the ultimate project goal by carrying out the management work on the project quality, schedule, safety, cost, procurement, information files, organization and coordination etc. according to customer’s contractual documents. Toncin contracts the design, procurement, construction and trials etc. for the entire process or some certain stages of the construction project according to the contract and takes full liability for the quality, safety, duration and cost etc. of the contracted project.
Response Time and After-sales Services
If any failure due to a defect has occurred during the warranty period, our company has given the following response and promise: to respond within 12 hours and rush to the domestic scene within 72 hours. With a rigorous and efficient service architecture, diverse and flexible service and response means, Toncin is capable of providing response service up to 7* 24 hours to ensure that users can get help at any time during the warranty period.

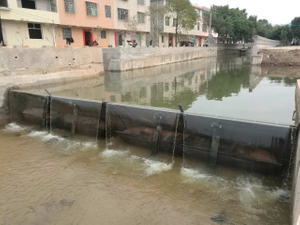

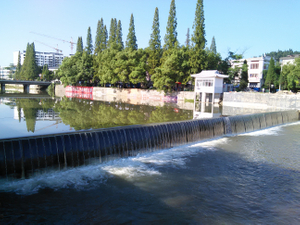

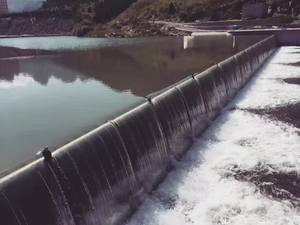

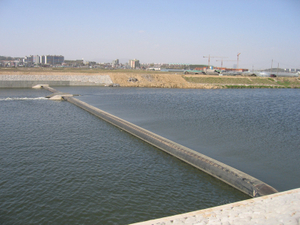

The workshop is 22,000 square meters, equipment 200 sets, worker 230. It owns 11 patents for invention, 18 patents for utility. With the full capacity of design, production, installation and after sales, more than 100 spillway gates were built by Sunny in domestic, for power plant impounding and river management. Our product also export to Italy, Thailand, Philippines, South Africa, Argentina etc.
