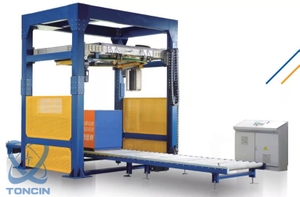

K120, K Series divide mechanic and stretch type , it is suitable for cargo transportation in shipping container and bulk cargo pallet wrapping, widely used in glass products, hardware tools, electronic appliances, paper making, ceramics ,chemical, food and beverage, building material industries etc. .the main performance is being optimized to the best, film carriage is a side-design style ,make stretch ratio higher ,ductility ratio stronger, film narrow rate lower, more secure, lower the wastage during transportation. Machine can be customized top platen and fully automatic type.
Product Paramater:
Wrapping size | (600-1200)*(500*1100)mm(L*W) |
Wrapping height(max) | 2400mm |
Wrapping efficiency | 20-40pallet/hour |
Turntable speed | 0-15rpm, speed adjustable |
Turntable diamater | 1650mm |
Turntable height | 78mm |
Bearing(max) | 2000kg |
Film carriage | Pre stretch could reach 300%, adjustable |
Lift system | Double chain, speed adjustale |
Dimension | 2745mm*1500mm*2780mm |
Weight | 500kg |
Power | 1.6 kw AC220V/50HZ |
Control system | PLC, wrapping layer adjustable, automatic resetting, photoelectric sense height |
