Automatic Pallet Wrapper with Top Sheet

K Series divide mechanic and stretch type , it is suitable for cargo transportation in shipping container and bulk cargo pallet wrapping, widely used in glass products, hardware tools, electronic appliances, paper making, ceramics ,chemical, food and beverage, building material industries etc.
Availability:
Quantity:
  • K130ZF
  • TONCIN

Instrodution


1.K120 预拉伸阻拉伸缠绕包装机1

K120, stretch wrapper


K Series divide mechanic and stretch type , it is suitable for cargo transportation in shipping container and bulk cargo pallet wrapping, widely used in glass products, hardware tools, electronic appliances, paper making, ceramics ,chemical, food and beverage, building material industries etc. .the main performance is being optimized to the best, film carriage is a side-design style ,make stretch ratio higher ,ductility ratio stronger, film narrow rate lower, more secure, lower the wastage during transportation. Machine can be customized top platen and fully automatic type.





Product Paramater:


Wrapping size

(600-1200)*(500*1100)mm(L*W)

Wrapping height(max)

2400mm

Wrapping efficiency

20-40pallet/hour

Turntable speed

0-15rpm, speed adjustable

Turntable diamater

1650mm

Turntable height

78mm

Bearing(max)

2000kg

Film carriage

Pre stretch could reach 300%,   adjustable

Lift system

Double chain, speed adjustale

Dimension

2745mm*1500mm*2780mm

Weight

500kg

Power

1.6 kw AC220V/50HZ

Control system

PLC, wrapping layer adjustable,   automatic resetting, photoelectric sense height



Related Products

2.K120-CS 压顶型缠绕包装机_副本



K120-CS stretch wrapper with top platen



K120CS, adopts electric top platen, compact structure, easy installation and maintenance .This model is simple and safe. Convenient, reliable, stable. Electric top platen is better than traditional cylinder platen model, installation is easy and maintenance is convenient.


3.K120M M型缠绕包装机_副本





K120M stretch wrapper with slot


K120M (turntable with slot) it is a humanized model, it use manual or electric forklift to load, save time and improve efficiency. The unique loading and unloading safety protection device could protect operator and goods.




膜架



K120Z Automaic stretch wrapper

K120Z, it adds automatic film clamping cutting device on the basis of standard machine which is more suitable for automated factory .it is high efficiency, the operation panel is superior to the conventional one, the sense of operation and experience is unmatched.


5.K130ZF 托盘覆膜缠绕一体机 2

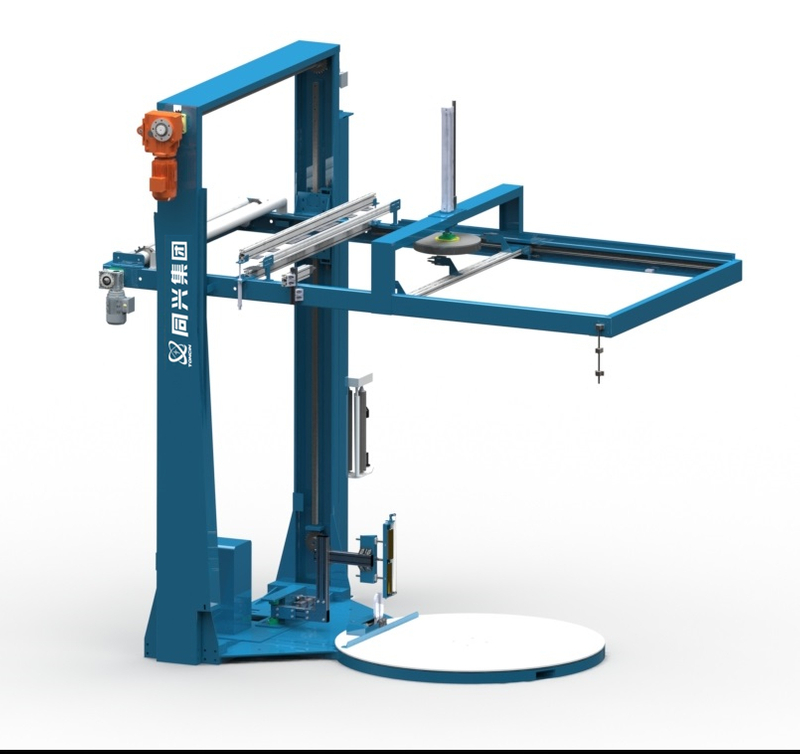

K130ZF Automatic stretch wrapper with top sheet

K130ZF, this model combine Top sheet with fully automatic online stretch wrapper together, compact structure, less land occupation, precise positioning, and the whole packing process is complete and the efficiency is not being affected, every function can be used separately.


Company Introduction

企业全景图

    We have strong technical strength with a professional team specialized in logistics packaging automation system and packaging machinery R & D for a long time. Our company had a number of technical invention patent, and worked with the domestic well-known colleges and research institutes to establish a long-term technical cooperation.

    The company's main product wrapping machine has grown from a single pallet wrapping machine to the full range of Stretch Wrapping Machines, Rotary arm stretch wrapping machine, Horizontal stretch wrapping machine, Ring type wrapping machine, High-speed ring wrapping machine, Cylinder axial wrapping machine, Cylinder radial wrapping machine, Luggage wrapping machine, Automatic laminating machine and so on. While maintaining the advantages of wrapping machine, we has successfully developed and delivered to use of logistics packaging lines in chemical fiber industry and automatic packaging lines in papermaking industry, chemical industry, metallurgy and building material industry household appliance industry and so on.


Service Support


  • Whole Technological Design

    Toncin determines reasonable plans and selections by conducting more systematic laboratory tests, semi-industrialization tests and theoretical analysis calculations and adopting appropriate methods in light of the actual problems faced by customers. And it determines specific parameters through laboratory tests and semi-industrial tests.


  • Project Construction

    Toncin can provide customers with integrated project services for its perfect project management system and experienced high-quality team and can also provide customers with its best services in achieving the ultimate project goal by carrying out the management work on the project quality, schedule, safety, cost, procurement, information files, organization and coordination etc. according to customer’s contractual documents. Toncin contracts the design, procurement, construction and trials etc. for the entire process or some certain stages of the construction project according to the contract and takes full liability for the quality, safety, duration and cost etc. of the contracted project.



Response Time and After-sales Services

If any failure due to a defect has occurred during the warranty period, our company has given the following response and promise: to respond within 12 hours and rush to the domestic scene within 72 hours. With a rigorous and efficient service architecture, diverse and flexible service and response means, Toncin is capable of providing response service up to 7* 24 hours to ensure that users can get help at any time during the warranty period.
