DT series online wrapper is applied on flow line wrapping, widely used automated production line, improve wrapping efficiency ,labor cost saving .at present, this kind of products have been widely used in chemical industry,electronics,food and beverage ,paper making and other industries.

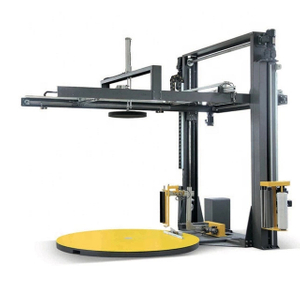

DT2000FR-HM, this machine adopt integral design which is suitable for high-end enterprises production line. Integrate automatic top sheet and online wrapper function, combine two equipment’s advantage together .operation is more stable and function is more perfect, high efficiency, easy installation, convenient maintenance and less land occupation.
Availability: | |
---|---|
Quantity: | |
DT2000FZ-HM
TONCIN
The DT series online wrapper is designed for the wrapping process in flow lines, significantly enhancing efficiency and saving labor costs in automated production lines. Currently, these products find extensive applications in various industries such as chemical, electronics, food and beverage, papermaking, and more.
The DT2000FR-HM is a cutting-edge machine featuring an integral design tailored for high-end enterprise production lines. It seamlessly integrates the functions of automatic top sheet placement and online wrapping, combining the advantages of two separate pieces of equipment. This integration results in improved stability, enhanced functionality, high efficiency, easy installation, convenient maintenance, and minimal space requirements. The machine is particularly well-suited for modern production environments where efficiency and precision are paramount.
Product's parameter:
Model | DT2000FZ-L, DT2000FZ-H, DT2000FZ-HCS |
Wrapping size | (800-1400)*(800-1200)mm |
Wrapping efficiency | 30-50pallets per hour |
Turntable speed | 0-15rpm, adjustable |
Turntable size | Diameter: 2000mm, height:500mm, roller conveyor |
Turntable load | 2000kg |
Film carriage | Stretch ratio 350%, adjustable |
Top platen | optional |
Control system | PLC |
Pneumatic system | 0.6-0.8Mpa, 250NL/min |
Weight | 900kg |
Dimension | 2820mm*1800mm*(2600-3200)mm |
Power | 3kw, 380V 50HZ |
Product's detail:
1.Adjustable Wrapping Force System
Automatically adapts wrap force to the shape of the pallet, ensuring a tight wrap on every part and safeguarding the corners of the loads from concavity.
Achieves a 350% pre-stretch rate, leading to a 30% film saving compared to traditional pallet wrapping machines.
2.Film Consumption Efficiency
Maximizes the value of each meter of stretch film with a maximum pre-stretch rate of 350%.
Utilizes standard constant releasing film for fixed-point wrapping and precise quantitative film usage.
3.Electric Top Sheeter
This model seamlessly integrates a top sheet with a fully automatic online stretch wrapper. Its compact structure minimizes land occupation, ensures precise positioning, and maintains high efficiency without compromising individual functionalities.

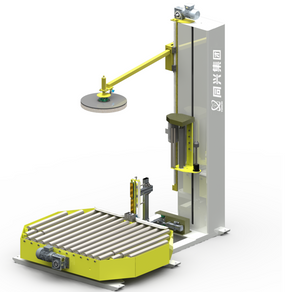

4.Slewing Bearing Turntable
Utilizes a slewing bearing turntable with a maximum load weight of 2000KG, offering reduced noise and lower vibration compared to chain drive turntables.
5.Lifting Column
Incorporates a double-chain structure with adjustable lifting speed through frequency conversion.
6.Operational Panel
Employs Siemens PLC control, frequency conversion speed regulation, and features a user-friendly touch screen interface or remote control for efficient and flexible operation.
The DT series online wrapper is designed for the wrapping process in flow lines, significantly enhancing efficiency and saving labor costs in automated production lines. Currently, these products find extensive applications in various industries such as chemical, electronics, food and beverage, papermaking, and more.
The DT2000FR-HM is a cutting-edge machine featuring an integral design tailored for high-end enterprise production lines. It seamlessly integrates the functions of automatic top sheet placement and online wrapping, combining the advantages of two separate pieces of equipment. This integration results in improved stability, enhanced functionality, high efficiency, easy installation, convenient maintenance, and minimal space requirements. The machine is particularly well-suited for modern production environments where efficiency and precision are paramount.
Product's parameter:
Model | DT2000FZ-L, DT2000FZ-H, DT2000FZ-HCS |
Wrapping size | (800-1400)*(800-1200)mm |
Wrapping efficiency | 30-50pallets per hour |
Turntable speed | 0-15rpm, adjustable |
Turntable size | Diameter: 2000mm, height:500mm, roller conveyor |
Turntable load | 2000kg |
Film carriage | Stretch ratio 350%, adjustable |
Top platen | optional |
Control system | PLC |
Pneumatic system | 0.6-0.8Mpa, 250NL/min |
Weight | 900kg |
Dimension | 2820mm*1800mm*(2600-3200)mm |
Power | 3kw, 380V 50HZ |
Product's detail:
1.Adjustable Wrapping Force System
Automatically adapts wrap force to the shape of the pallet, ensuring a tight wrap on every part and safeguarding the corners of the loads from concavity.
Achieves a 350% pre-stretch rate, leading to a 30% film saving compared to traditional pallet wrapping machines.
2.Film Consumption Efficiency
Maximizes the value of each meter of stretch film with a maximum pre-stretch rate of 350%.
Utilizes standard constant releasing film for fixed-point wrapping and precise quantitative film usage.
3.Electric Top Sheeter
This model seamlessly integrates a top sheet with a fully automatic online stretch wrapper. Its compact structure minimizes land occupation, ensures precise positioning, and maintains high efficiency without compromising individual functionalities.
4.Slewing Bearing Turntable
Utilizes a slewing bearing turntable with a maximum load weight of 2000KG, offering reduced noise and lower vibration compared to chain drive turntables.
5.Lifting Column
Incorporates a double-chain structure with adjustable lifting speed through frequency conversion.
6.Operational Panel
Employs Siemens PLC control, frequency conversion speed regulation, and features a user-friendly touch screen interface or remote control for efficient and flexible operation.
