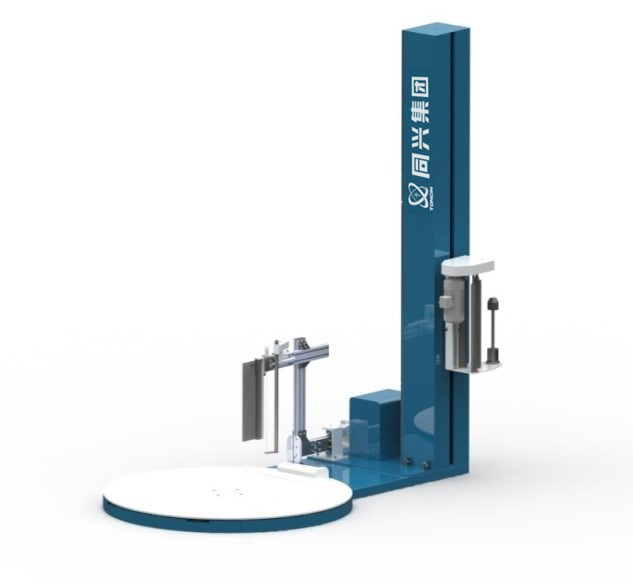

Full Automatic Pallet Wrapping Machine Wrapper with Cutting Film Device

K120Z, it adds automatic film clamping cutting device on the basis of standard machine which is more suitable for automated factory .it is high efficiency, the operation panel is superior to the conventional one, the sense of operation and experience is unmatched.

Quantity:
  • K120Z
  • TONCIN

K120, K Series divide mechanic and stretch type , it is suitable for cargo transportation in shipping container and bulk cargo pallet wrapping, widely used in glass products, hardware tools, electronic appliances, paper making, ceramics ,chemical, food and beverage, building material industries etc. .the main performance is being optimized to the best, film carriage is a side-design style ,make stretch ratio higher ,ductility ratio stronger, film narrow rate lower, more secure, lower the wastage during transportation. Machine can be customized top platen and fully automatic type.

K120Z, it adds automatic film clamping cutting device on the basis of standard machine which is more suitable for automated factory .it is high efficiency, the operation panel is superior to the conventional one, the sense of operation and experience is unmatched.


Product paramaters:

Wrapping size

(600-1200)*(500*1100)mm(L*W)

Wrapping height(max)

2400mm

Wrapping efficiency

20-40pallet/hour

Turntable speed

0-15rpm, speed adjustable

Turntable diamater

1650mm

Turntable height

78mm

Bearing(max)

2000kg

Film carriage

Pre stretch could reach 300%,   adjustable

Lift system

Double chain, speed adjustale

Dimension

2745mm*1500mm*2780mm

Weight

500kg

Power

1.6 kw AC220V/50HZ

Control system

PLC, wrapping layer adjustable,   automatic resetting, photoelectric sense height


Product's detail:

1.Automatic Cut and Clamp Film
K120Z automatic cut and clamp film system, workers do not need use their hand to cut film and put film on pallet any more, cut & clamp film system will do it automatically.



2.Remote Control

Customers only need to press the start button on the remote control, and the equipment can automatically carry out the winding operation and automatically cut the film at the end.


3.Turntable Drive
Turntable chain drive, slow start, slow stop, automatic reset; turntable speed 0~15 rpm variable frequency speed regulation.


4.The Film System

The open-door film holder makes it more convenient to wear the film. The winding numbers on the top and bottom are individually adjustable. The film follow-up system can automatically feed the film.


5.Control System
PLC programmable control, the number of winding layers and times can be changed, the photoelectric switch automatically senses the height of the goods,Upper and break film, automatic control of stroking process.
