Triangle Rotary Arm Stretch Wrapping Machine

DR series fully automatic rotary arm stretch wrapper .it is suitable for the big volume, high efficiency factory and applied on different dimensions goods. Can be customized according to customer demand, can work with production and assembly line together and used for wrapping separately. The machine could complete the process for goods’ sensing, centering, conveying and wrapping, the conveyor could be customized as per customer site. Fully automatic structure could be zero-labor, it is the high efficiency modern type, widely used in food, beverage, chemical, paper making, building material and other industries

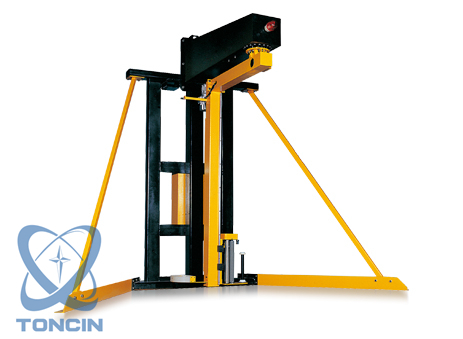

DR1800FE, triangle type wrapper could place goods directly on the ground, which is not restricted by factors such as conveying lines, turntable load and other factors.it wrap heavy goods. Meanwhile, it is not restricted by re-stacking, can pack light goods. Fast rotation, high efficiency .it is an indispensable model in the wrapper.

Quantity:
Availability:





Inquire Add to Basket

Model:
DR1800FE
Brand:
TONCIN

Product Description

DR series fully automatic rotary arm stretch wrapper .it is suitable for the big volume, high efficiency factory and applied on different dimensions goods. Can be customized according to customer demand, can work with production and assembly line together and used for wrapping separately. The machine could complete the process for goods’ sensing, centering, conveying and wrapping, the conveyor could be customized as per customer site. Fully automatic structure could be zero-labor, it is the high efficiency modern type, widely used in food, beverage, chemical, paper making, building material and other industries

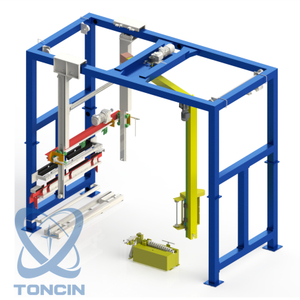

DR1800FZ-FM,this model add top sheet function and is new all in one wrapper machine.it is with stretch wrapping and top sheet functions, it could do 5 sides wrapping ,dust-proof, moisture-proof, rain-proof. It realized zero-labor function, high efficiency and cost saving.

Technical parameter:

Wrapping size	(500-1200)(500-1200)2200(LWH)
Rotary arm speed	0-20RPM, adjustable
Wrapping efficiency	>25pallet/hour
Film carriage system	Pre stretch,>250%, speed adjustable
Film cutting clamping	Automatic film cutting claming
Top sheeter film	PE/PVA film, width:1800mm, diameter:100-300um, thickness: 30-100um
Wrapping flim	LLDPE width:500mm, thickness:20-35um
Lifter part	Rail lift system speed adjustable
Conveyor system	Conveyor height:400mm, speed:8-15m/min, bearing weight: 2000kg
Control system	PLC, parameters adjustable, length of laminating film adjustable, sense product height automatically
Motor	Rotary arm:1.1 kw, film carriage: 0.37kw, lifter: 0.37kw, top sheeter: 0.37kw
Power	380V, 50HZ, 3фаза, 4kw
Pneumatic	0.4-0.6Mpa, 35NL/min
Dimension	450022003500mm
Component	Four heavy duty column，rotary arm system, top sheeter, automatic film cutting clamping, conveyor

1.Control system:
Famous PLC programming system, stable working;
Auto height detection by photo-eye sensor;
Top/bottom & up-down wrap counts setting available from 0-9;
Film tension control adjustment on the panel;
0-15RPM variable arm speed by frequency inverter;
Flash light for machine in operation;
Rotary arm stop by safety bumper and reflective photo-eye

2.Film carriage:
Powered pre-stretch system motor driven, stretching ratio up to 250%, film saving and tighten
Carriage door opens for effortless film replacement;
Adjustable film feeding speed by separate AC drive motor
Heavy duty double-chain carriage lift, safe and steady.

3.Operation panel:
Button panel is simple and easy operation.
Stretch film automatic feeding and cutting device: (Optional).
When stretch wrapping finish, the film will be cut and clamped automatically.
