K120ZF
TONCIN
Product introduction

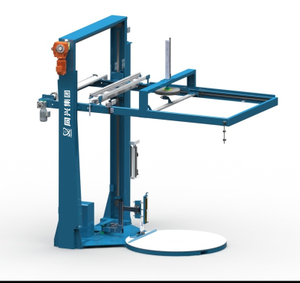

K130ZF, this model combine Top sheet with fully automatic online stretch wrapper together, compact structure, less land occupation, precise positioning, and the whole packing process is complete and the efficiency is not being affected, every function can be used separately.
Product Paramaters:
Wrapping size | (600-1200)*(500*1100)mm(L*W) |
Wrapping height(max) | 2400mm |
Wrapping efficiency | 20-40pallet/hour |
Turntable speed | 0-15rpm, speed adjustable |
Turntable diamater | 1650mm |
Turntable height | 78mm |
Bearing(max) | 2000kg |
Film carriage | Pre stretch could reach 300%, adjustable |
Lift system | Double chain, speed adjustale |
Dimension | 2745mm*1500mm*2780mm |
Weight | 500kg |
Power | 1.6 kw AC220V/50HZ |
Control system | PLC, wrapping layer adjustable, automatic resetting, photoelectric sense height |
Our advantage:
1. Film carriage
Maximum up to 300% pre-stretch rate
Minimize the amount of stretch film, save you a bit of cost
Safety device under film carriage to protect the foot of the operator
2. Better Spare Parts
Schneider inverter
Limit switch Siemens-APT
Photoelectric switch Panasonic
3. Laminating mechanism
Integrated column to laminating mechanism, reliable interpretation, stable protection of cargo;
Double chain structure with brake motor ensures efficiency and safety
4. control panel
PLC, wrapping layer adjustable, automatic resetting, photoelectric sense height.
Service Support
Overall process design
Toncin determines reasonable plans and options by conducting more systematic laboratory tests, semi-industrial tests and theoretical analysis and calculations, and by using appropriate methods based on the actual problems faced by the customer. Specific parameters are also determined through laboratory tests and semi-industrial tests.
Engineering Construction
With its comprehensive project management system and experienced and highly qualified team, Toncin provides customers with integrated project services and provides the best services to achieve the final project goals by managing project quality, schedule, safety, cost, procurement, information files, organization and coordination according to the customer's contract documents.Toncin contracts the entire process of construction projects or certain phases of design, procurement, construction and testing, etc. Toncin assumes full responsibility for the quality, safety, schedule and cost of the contracted project.
Response Time and After-sales Services
If any failure due to a defect has occurred during the warranty period, our company has given the following response and promise: to respond within 12 hours and rush to the domestic scene within 72 hours. With a rigorous and efficient service architecture, diverse and flexible service and response means, Toncin is capable of providing response service up to 7* 24 hours to ensure that users can get help at any time during the warranty period.
