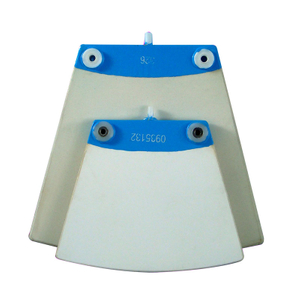

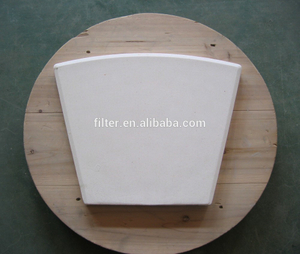

Toncin Ceramic Plate for Ceramic Vacuum Filter

Ceramic filter plate, also known as ceramic filter, ceramic plate and filter plate, is a new filter medium made of corundum and silicon carbide by special techniques. Our ceramic filter plates have been widely used in the filter dewatering of iron concentrate, zinc concentrate, copper concentrate, nickel concentrate, aluminum concentrate, gold concentrate, and other non-metallic concentrates and the solid-liquid separation of coal, fine chemical engineering, paper, pharmaceutical, chemical fiber, food, environmental protection and other sectors.

Availability:
Quantity:
Inquire Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
sharethis sharing button

  • Ceramic filter plate

  • Toncin

Industries use aluminum trioxide filtering ceramics disc plate for filter


Product Application:


Our company's ceramic filter plates have been widely used in filtration and dehydration of iron concentrates, zinc concentrates, sulfur concentrates, copper concentrates, nickel concentrates, aluminum concentrates, gold concentrates, non-metallic concentrates and other concentrates as well as in the solid-liquid separation in coal, fine chemicals, papermaking, pharmaceutical, chemical fiber, food, environmental protection and other industries.

Industries use aluminum trioxide filtering ceramics disc plate for filter


Product Specification:



Descriptions

White Corundum

Brown Corundum

Plate Area(M2)

1,2,3,4,6

1,2,3,4,6

Coating Model(μm)

H4,H7,H10,H14-1,H14-2

H4,H7,H10,H14-1,H14-2

Substrate Material Size(Mesh)

150,180,200,220,240

150,180,200,220,240

Suitable Slurry Particle Size(μm)

0.5,3,5,7,10,14

0.5,3,5,7,10,14

Industries use aluminum trioxide filtering ceramics disc plate for filter

Descriptions

White Alundum

Brown Alumina

Remarks

Specifications

1M2 2M2 3M2 4M2 6M2

1M2 2M2 3M2 4M2 6M2

Combination of best
membrane filter and
basal plate should be made towards various materials for

filtration and filter media
to optimize filtration
effect.

Particle Dia Range

0.5μm,3μm,5μm,
7μm,10μm,14μm

0.5μm,3μm,5μm,
7μm,10μm,14μm

Substrate Selection(AL2O3)

150mesh,180mesh,200mesh,
220mesh,240mesh

150mesh,180mesh,200mesh,
220mesh,240mesh



Product Details:


Ceramic plates are used in ceramic filters. Our company has a professional cearamic factory which won the most order of ceramic plate of China in 2014.Our company wons patents of IRG coating technology which can achieve higher pore area, big production Capacity and higher filtration precision.Our ceramic plates can adjust filtration effect by using different substrate and coating material. Restoration and recyling project can reduce the damage to environment and the cost.

Industries use aluminum trioxide filtering ceramics disc plate for filter


Products Advantages



Industries use aluminum trioxide filtering ceramics disc plate for filter

  • High pressure resistance---high anti-cleaning pressure—the ceramic plates have long service life

  • Fully automated machinery is used for the production of stable, reliable and flat filter layers.

  • Ceramic plates are used in ceramic filters. Our company has a professional ceramic factory which won the most order of ceramic plate of China in 2014.

  • Our company wins patents of IRG coating technology which can achieve higher pore area, big production Capacity and higher filtration precision.

  • Our ceramic plates can adjust filtration effect by using different substrate and coating material. Restoration and recycling project can reduce the damage to environment and the cost.
