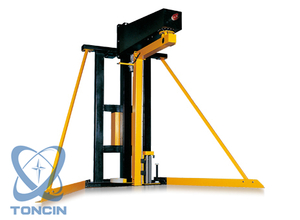

Stretch Wrapping Machine Wrapper

DR series fully automatic rotary arm stretch wrapper .it is suitable for the big volume, high efficiency factory and applied on different dimensions goods. Can be customized according to customer demand, can work with production and assembly line together and used for wrapping separately. The machine could complete the process for goods’ sensing, centering, conveying and wrapping, the conveyor could be customized as per customer site. Fully automatic structure could be zero-labor, it is the high efficiency modern type, widely used in food, beverage, chemical, paper making, building material and other industries

DR1800FZ-FM,this model add top sheet function and is new all in one wrapper machine.it is with stretch wrapping and top sheet functions, it could do 5 sides wrapping ,dust-proof, moisture-proof, rain-proof. It realized zero-labor function, high efficiency and cost saving.

Technical parameter:

1.Control system:
Famous PLC programming system, stable working;
Auto height detection by photo-eye sensor;
Top/bottom & up-down wrap counts setting available from 0-9;
Film tension control adjustment on the panel;
0-15RPM variable arm speed by frequency inverter;
Flash light for machine in operation;
Rotary arm stop by safety bumper and reflective photo-eye

2.Film carriage:
Powered pre-stretch system motor driven, stretching ratio up to 250%, film saving and tighten
Carriage door opens for effortless film replacement;
Adjustable film feeding speed by separate AC drive motor
Heavy duty double-chain carriage lift, safe and steady.

3.Operation panel:
Button panel is simple and easy operation.
Stretch film automatic feeding and cutting device: (Optional).
When stretch wrapping finish, the film will be cut and clamped automatically.

Service Support

• Whole Technological Design

  Toncin determines reasonable plans and selections by conducting more systematic laboratory tests, semi-industrialization tests and theoretical analysis calculations and adopting appropriate methods in light of the actual problems faced by customers. And it determines specific parameters through laboratory tests and semi-industrial tests.





• Project Construction

  Toncin can provide customers with integrated project services for its perfect project management system and experienced high-quality team and can also provide customers with its best services in achieving the ultimate project goal by carrying out the management work on the project quality, schedule, safety, cost, procurement, information files, organization and coordination etc. according to customer’s contractual documents. Toncin contracts the design, procurement, construction and trials etc. for the entire process or some certain stages of the construction project according to the contract and takes full liability for the quality, safety, duration and cost etc. of the contracted project.

Response Time and After-sales Services

If any failure due to a defect has occurred during the warranty period, our company has given the following response and promise: to respond within 12 hours and rush to the domestic scene within 72 hours. With a rigorous and efficient service architecture, diverse and flexible service and response means, Toncin is capable of providing response service up to 7* 24 hours to ensure that users can get help at any time during the warranty period.
